(LH)Left Hand Side Vent Axia Sentinel Kinetic Plus B Heat Recovery Unit - 443028L
(LH)Left Hand Side Vent Axia Sentinel Kinetic Plus B Heat Recovery Unit - 443028L
SKU : 443028L
Overview
The Vent Axia Kinetic Plus B is a high-performance Mechanical Ventilation with Heat Recovery (MVHR) system that delivers efficient, sustainable, and comfortable ventilation for homes and buildings. Designed for new builds or major renovations, this unit offers 91% heat recovery efficiency and provides an intelligent ventilation solution for improved indoor air quality and energy savings.In Stock
Couldn't load pickup availability
For warranty information, please refer to the manufacturer’s warranty policy or contact them directly.
Download Files
Description

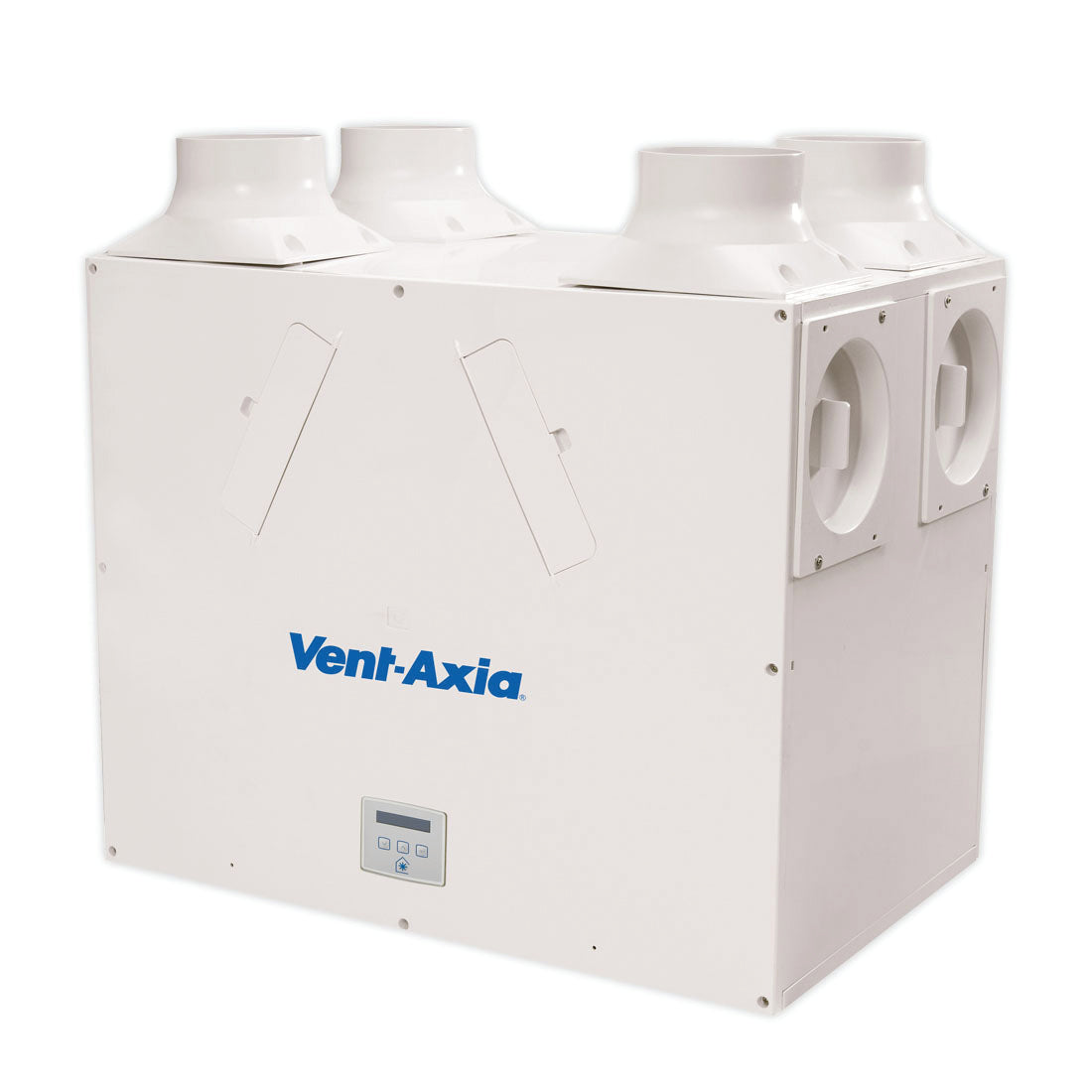

Vent Axia Kinetic Plus B Left Hand – MVHR System
Product Part Number:
- RHS - 443028
- LHS - 443028L
Description
The Vent Axia Kinetic Plus B is a high-performance Mechanical Ventilation with Heat Recovery (MVHR) system that delivers efficient, sustainable, and comfortable ventilation for homes and buildings. Designed for new builds or major renovations, this unit offers 91% heat recovery efficiency and provides an intelligent ventilation solution for improved indoor air quality and energy savings.
With a boost switch and humidity control, the Kinetic Plus B optimizes airflow to maintain a healthy indoor environment, all while reducing heating costs. Suitable for homes up to 260m², this unit is designed for both wall and floor mounting and offers flexible installation with 4 x 150mm duct connections.
Key Features:
- Heat Recovery Efficiency: 91% for superior energy savings
- Airflow Rate: Max 490m³/h; 425m³/h at 100Pa – Ideal for homes up to 260m²
- Filtration: Comes with 2 x G4 filters, with an option for 1 x M5 for extra filtration.
- Summer Bypass: Prevents overheating during warmer months.
- Frost Protection: Ensures reliable operation even in cold temperatures.
- Boost Switch Control: Convenient momentary boost switch for increased airflow.
- BMS Integration: Compatible with KNX BMS systems.
- Humidity Control: Includes both internal and optional external humidity sensors.
- Condensate Drain: Ensures moisture is drained away for a clean system.
- Sound Level: Ranges from 22 to 49 dB(A), ensuring quiet operation at a distance of 3 meters.
- SAP Appendix Q: Compliant for enhanced energy performance in UK homes.
- 5-Year Warranty: Confidence in long-lasting reliability.

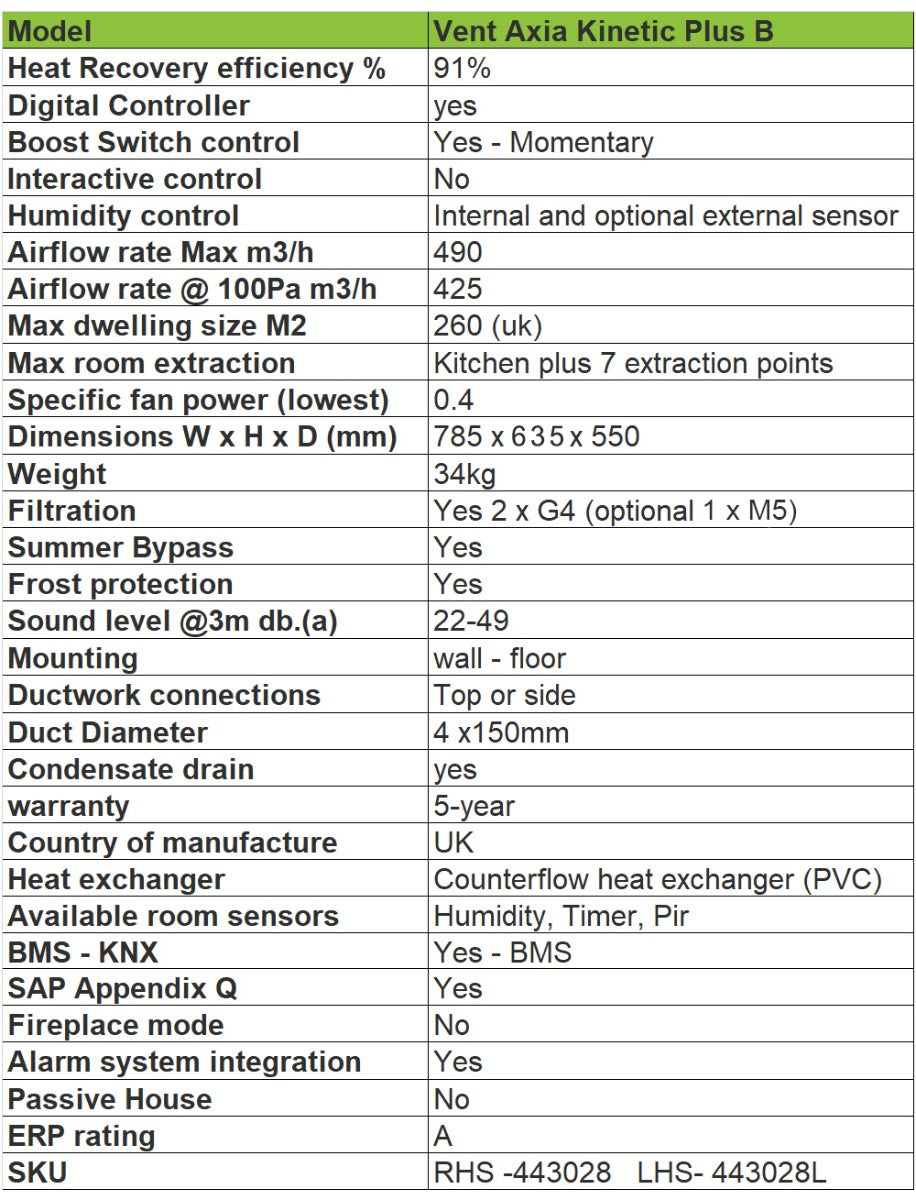

Technical Specifications:
| Parameter | Specification |
|---|---|
| Airflow Rate Max | 490m³/h |
| Airflow Rate @ 100Pa | 425m³/h |
| Max Dwelling Size | 260m² |
| Max Room Extraction | Kitchen + 7 extraction points |
| Specific Fan Power (lowest) | 0.40 |
| Dimensions (W x H x D) | 785 x 635 x 550 mm |
| Weight | 24kg |
| Filtration | 2 x G4 filters (optional 1 x M5) |
| Summer Bypass | Yes |
| Frost Protection | Yes |
| Sound Level @ 3m | 22-49 dB(A) |
| Mounting | Wall or floor mounted |
| Ductwork Connections | Top or side |
| Duct Diameter | 4 x 150mm |
| Condensate Drain | Yes |
| BMS | Yes - KNX |
| Fireplace Mode | No |
| Alarm System Integration | Yes |
| Passive House | No |
| ERP Rating | A |
| Warranty | 5 years |
| Country of Manufacture | UK |
| Heat Exchanger | PVC Counterflow |
| Available Room Sensors | Humidity, Timer, PIR |
| SAP Appendix Q | Yes |
What's in the Box?
- 1 x Vent Axia Kinetic Plus B MVHR Unit
- 2 x G4 filters
- Unit mounted Digital Controller
- Wall Mounting Bracket
- User Manual
Optional Accessories
- Upgraded M5 filters for enhanced air filtration
- Remote mounted Room Controller (wired)
Optional Models: For installations where noise control is priority
- Unit with an acoustic enclosure
- Unit with an acoustic enclosure and acoustic top box
Why Choose the Vent Axia Kinetic Plus B?
- Maximized Energy Efficiency: 91% heat recovery to save on heating bills.
- Quiet Operation: With a noise level range of 22-49 dB(A), it ensures a comfortable environment.
- Long-lasting Performance: Backed by a 5-year warranty for peace of mind.
- Sustainable Comfort: Provides clean, fresh air with efficient heat recovery for healthier living spaces.
- Flexible Installation: Compatible with various mounting options and duct connections
