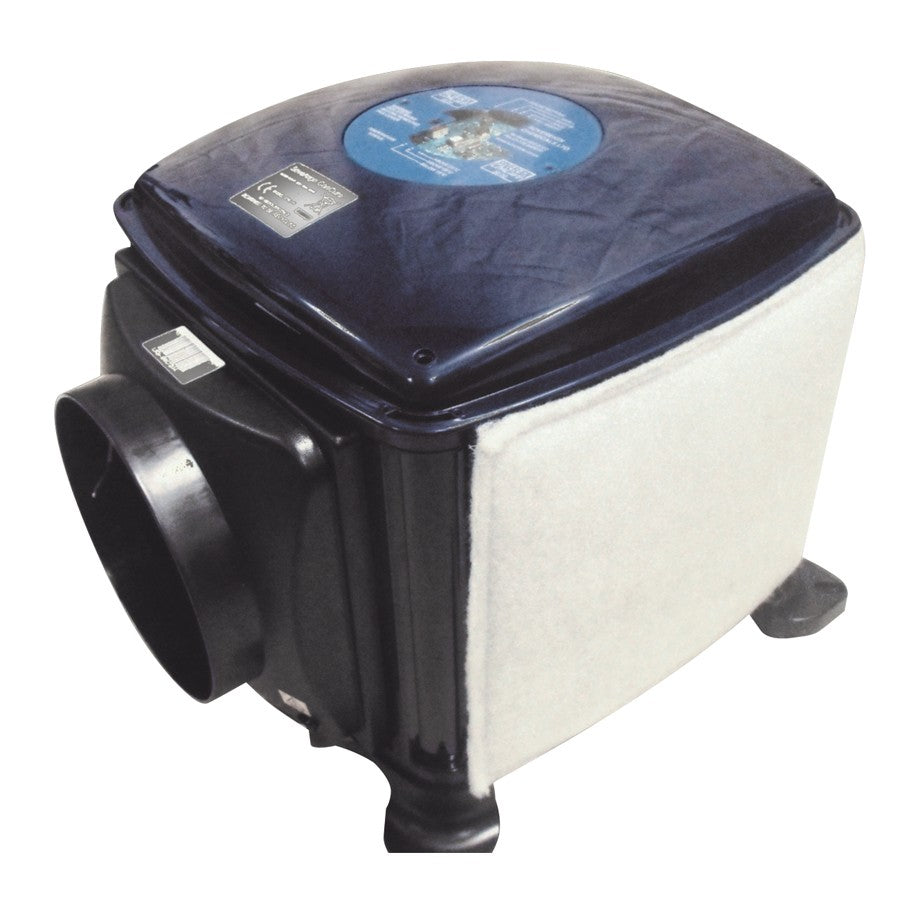

S&P PIV Loft Mounted Unit c/w Heater (max 58.3l/s-210m3/h)

S&P PIV Loft Mounted Unit c/w Heater (max 58.3l/s-210m3/h)

SKU : S&P-PIV

Overview

The PIV Series from Soler & Palau is a whole-house positive input ventilation (PIV) solution designed for dwellings where a traditional whole-house ventilation system cannot be installed.
€607,95 Excl. Vat : €506,62
€406,95 Excl. Vat : €339,12
Sale Sold out

Out of Stock
  • For warranty information, please refer to the manufacturer’s warranty policy or contact them directly.

Download Files

View full details

Description

Product Part Number

S&P-PIV

Product Overview

The PIV Series from Soler & Palau is a whole-house positive input ventilation (PIV) solution designed for dwellings where a traditional whole-house ventilation system cannot be installed.

The unit operates by drawing fresh air from the attic space—where temperatures are typically higher than outdoor air—filtering it, and gently supplying it into the home via a central hallway diffuser. This process helps reduce condensation, control humidity, and improve overall indoor air quality.

For enhanced comfort during colder months, the PIV unit incorporates an automatic 500 W pre-heating battery that warms incoming air when required. Intelligent airflow regulation adapts ventilation rates based on attic temperature, ensuring energy-efficient operation and consistent comfort throughout the year.

An oversized G4 air filter, covering three sides of the unit (270°), increases dust-holding capacity and extends maintenance intervals. The system is powered by a low-energy EC (DC) motor and offers four selectable operating modes to suit different dwelling sizes and occupancy patterns.

The PIV BP version includes an external air by-pass, allowing the unit to draw air directly from outside when attic temperatures exceed 25°C, preventing unwanted overheating of the dwelling.

Key Benefits

  • Improves indoor air quality and reduces condensation
  • Ideal for properties unsuitable for full MVHR systems
  • Low energy consumption with EC motor technology
  • Automatic temperature and airflow regulation
  • Simple installation with no major building works required

Technical Specification

General

  • Product type: Whole house Positive Input Ventilation (PIV) unit
  • Application: Single dwellings
  • Installation location: Attic / loft space
  • Air supply point: Hallway below attic

Models

  • PIV – Standard model (attic air intake)

Electrical

  • Power supply: 230 V / 50 Hz
  • Motor type: EC (DC) low-consumption motor
  • Protection class: IP20
  • Insulation class: Class II

Performance

Model Absorbed Power (W)* Heating Battery (W) Max Airflow (m³/h) Sound Pressure @ 3 m (dB(A))
PIV 9 500 210 28
PIV BP 10 500 200 28

Airflow Control

  • Operating modes: 4 selectable schemes
  • Automatic airflow adjustment based on attic temperature
  • Airflow range: 70 – 210 m³/h
  • Operation stop (optional): When attic temperature exceeds 25°C

Temperature Control

  • Integrated pre-heating battery: 500 W
  • Activation temperature:
    • Below 10°C (standard)
    • Below 15°C (comfort setting)
  • Battery operation: Automatic (can be manually disconnected via external switch – not supplied)

Filtration

  • Filter type: G4
  • Design: Oversized filter covering 3 sides (270°) for extended service life

Supplied Components

  • PIV ventilation unit
  • G4 air filter
  • Ø200 mm supply valve
  • 1 m flexible duct Ø200 mm
  • Fixing kit (screws and silent-blocks)

Dimensions (mm)

  • Unit dimensions: approx. 407 × 405 × 300
  • Duct connection: Ø200 mm

Installation Advantages

  • Quick and easy to mount
  • No complex ductwork required
  • Suitable for retrofit and refurbishment projects
