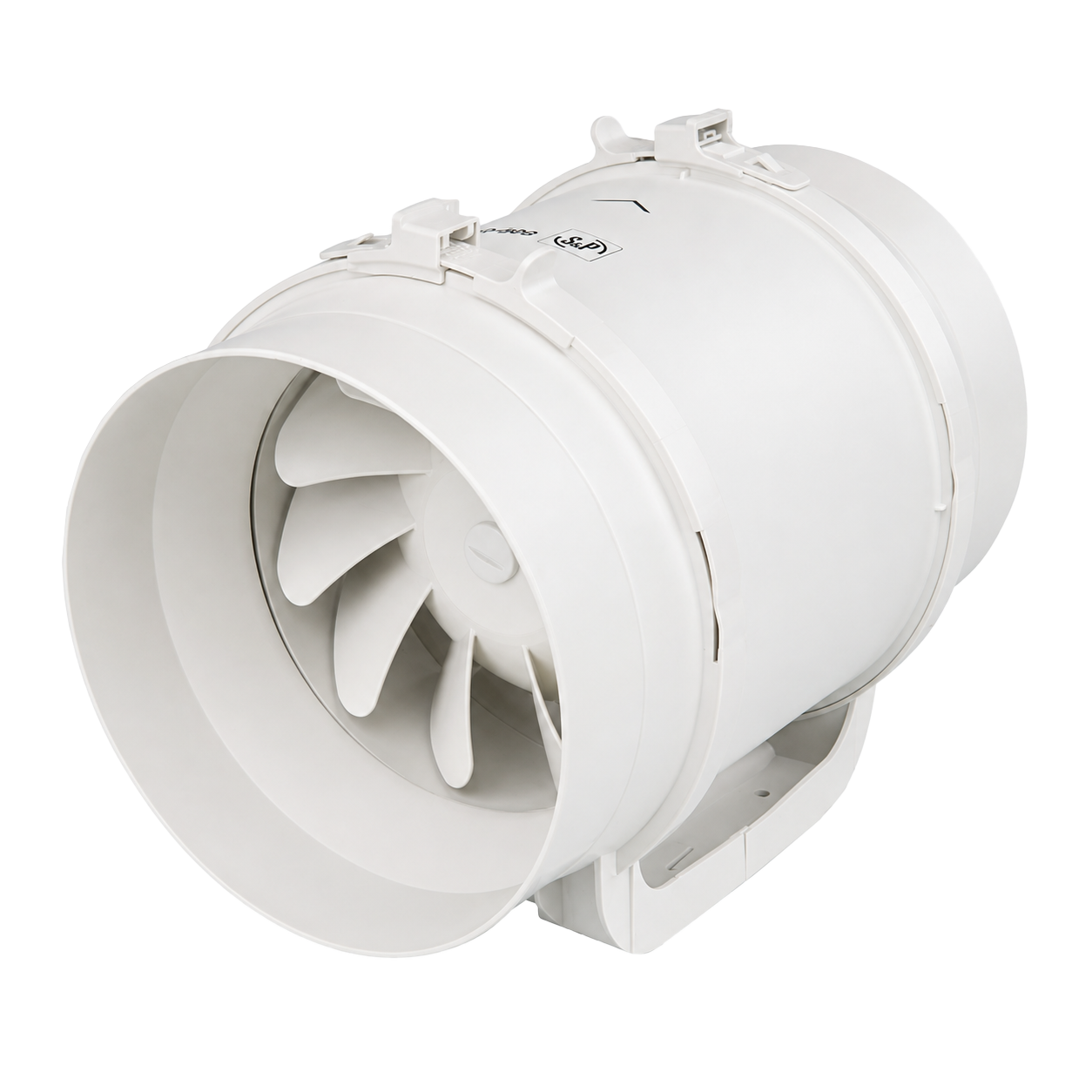

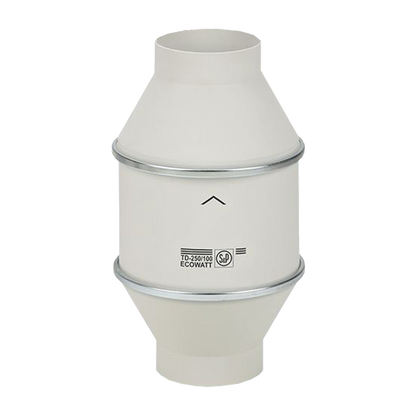

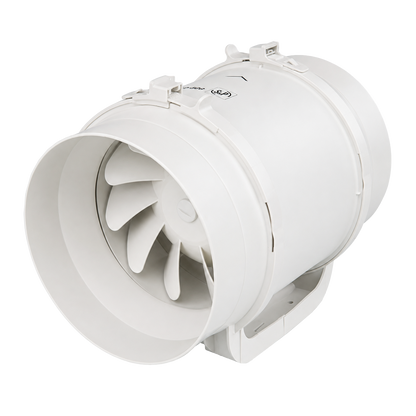

S&P TD-250/100-T Standard In-Line Fan c/w Timer - Rated @69.4l/s 2 speed

S&P TD-250/100-T Standard In-Line Fan c/w Timer - Rated @69.4l/s 2 speed

SKU : TD-250/100-T

Overview

The S&P TD-250/100 T In-Line Mixed-Flow Fan is designed for use with 100mm circular ducting in residential and light commercial ventilation systems. Its compact, low-profile construction makes it particularly suitable for installation within ceiling voids and other areas where available space is limited.
€120,28 EUR Excl. VAT: €100,23 EUR

Out of Stock
  • For warranty information, please refer to the manufacturer’s warranty policy or contact them directly.
View full details

Description

Product Part Number

TD-250/100-T

Description

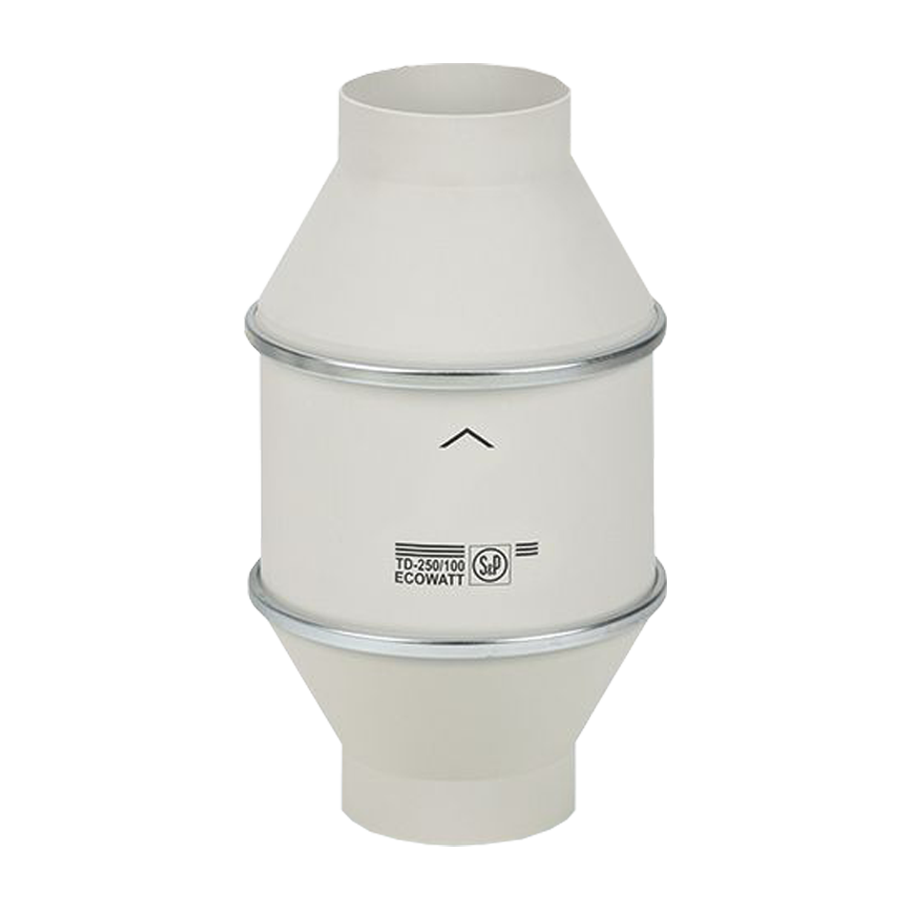

The S&P TD-250/100 T In-Line Mixed-Flow Fan is designed for use with 100mm circular ducting in residential and light commercial ventilation systems. Its compact, low-profile construction makes it particularly suitable for installation within ceiling voids and other areas where available space is limited.

The fan provides an airflow of up to 250m³/h (69.4l/s) and includes an adjustable run-on timer. Once the connected switch is turned off, the fan continues operating for a selected period between 1 and 30 minutes, helping remove remaining moisture, stale air and odours from the ventilated area.

Manufactured with a reinforced polypropylene casing and ABS mixed-flow impeller, the TD-250/100 T combines efficient airflow performance with a durable, lightweight construction. The integrated mounting bracket allows the motor and impeller assembly to be removed for maintenance without disconnecting the adjoining ductwork.

This timer model operates at a single speed and is not suitable for use with an external speed controller.

Technical Specification

Specification Details
Manufacturer Soler & Palau (S&P)
Model TD-250/100 T
Manufacturer reference 5211325500
Fan type In-line mixed-flow duct fan
Timer Adjustable run-on timer
Timer range 1–30 minutes
Speed Single speed
Motor speed 2,140rpm
Maximum airflow 250m³/h
Maximum airflow 69.4l/s
Maximum absorbed power 28W
Maximum absorbed current 0.12A
Electrical supply 230V, single phase, 50Hz
Sound pressure level 34dB(A) at 3 metres
Operating air temperature −20°C to +40°C
Nominal duct diameter 100mm
Spigot diameter 97mm
Overall length 303mm
Maximum casing diameter 176mm
Weight 2kg
Casing material Polypropylene
Impeller material ABS
Motor bearings Ball bearings, greased for life
Motor protection Thermal protection
Electrical protection Class II
Ingress protection IP44
Speed controller compatibility Not suitable for speed control
Mounting Integrated mounting bracket

Frequently Asked Questions

  • What is an extractor fan used for?

    An extractor fan removes humid, stale or polluted air from a room. They are commonly used in bathrooms, kitchens, utility rooms and other areas where moisture, odours or poor airflow can build up.

  • What extractor fan do I need for a bathroom?

    The right bathroom extractor fan depends on the room size, installation location, duct route and control type required. Timer, humidity and low-carbon options are available depending on the project.

  • Can extractor fans help with condensation?

    Yes, extractor fans can help reduce condensation by removing humid air from wet rooms. However, condensation can also be affected by insulation, heating, airflow and overall ventilation.

  • What is a D-MEV fan?

    A D-MEV fan is a decentralised mechanical extract ventilation fan. It usually runs continuously at a low rate, with boost options when more extraction is needed.

  • What is the difference between an extractor fan and an inline fan?

    A standard extractor fan is usually mounted on a wall, window or ceiling. An inline fan is installed within the duct run, often in a loft or ceiling void, and can be useful where a longer duct route is needed.
