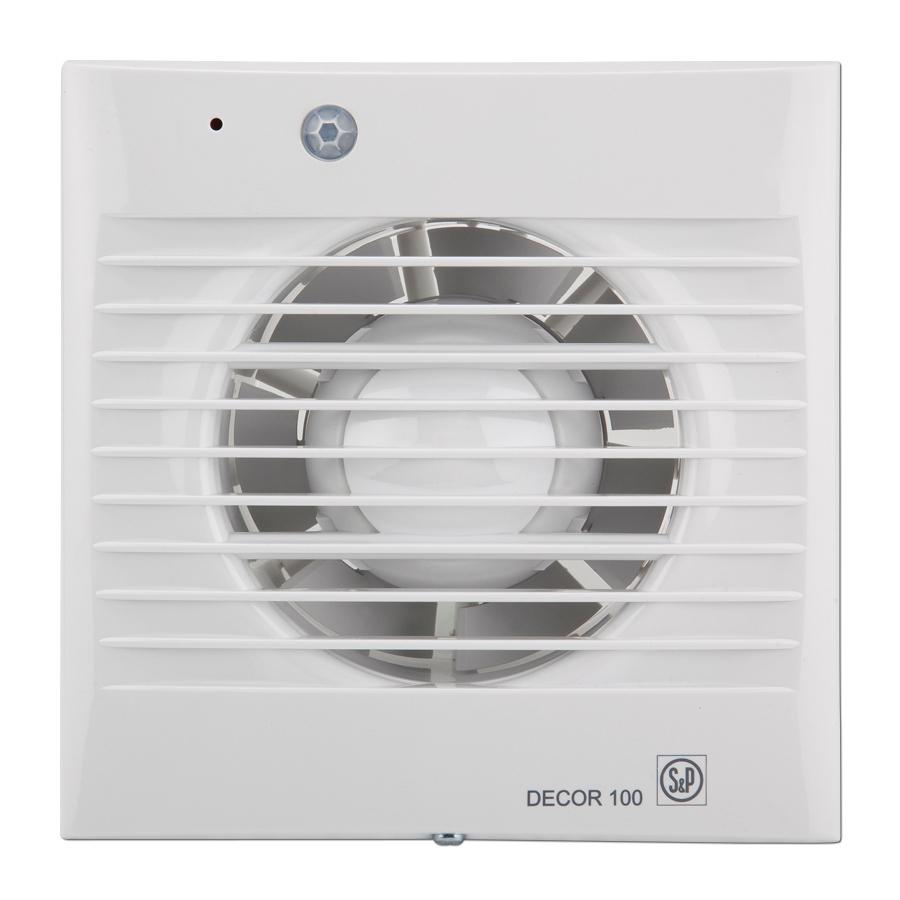

S&P Decor 100 CDZ Wall Fan - PIR / Timer / Indicator / Shutte - Rated 22l/s

S&P Decor 100 CDZ Wall Fan - PIR / Timer / Indicator / Shutte - Rated 22l/s

SKU : DECOR-100-CD-Z

Overview

The S&P DECOR-100 CDZ is a compact 100mm axial extract fan designed to remove stale air, moisture and odours from bathrooms, toilets and other small domestic spaces. Its slimline white front grille provides a discreet finish, while the fan connects to standard 100mm circular ducting.
€101,42 EUR Excl. VAT: €84,52 EUR

Low stock
  • For warranty information, please refer to the manufacturer’s warranty policy or contact them directly.

Download Files

View full details

Description

Product Part Number

DECOR-100-CD-Z

Product Overview

The S&P DECOR-100 CDZ is a compact 100mm axial extract fan designed to remove stale air, moisture and odours from bathrooms, toilets and other small domestic spaces. Its slimline white front grille provides a discreet finish, while the fan connects to standard 100mm circular ducting.

An integrated passive infrared movement sensor automatically switches the fan on when movement is detected within a maximum distance of approximately four metres. This provides demand-controlled ventilation without requiring the user to operate a separate wall switch.

The adjustable run-on timer allows the fan to continue operating for between approximately 1 and 30 minutes after movement was last detected, helping remove residual moisture and odours from the room.

The DECOR-100 CDZ also includes a visual operation indicator and an automatic back-draught shutter, which helps prevent outside air from entering when the fan is switched off. As a “Z” model, it incorporates a long-life ball-bearing motor for dependable operation.

Technical Specification

Manufacturer: Soler & Palau

Product Range: DECOR

Fan Type: Axial extract fan

Application: Bathrooms, toilets and other small domestic spaces

Installation: Wall mounted

Duct Connection: 100mm diameter

Maximum Free-Air Flow: 95m³/h

Maximum Free-Air Flow: Approximately 26.4l/s

Listed Rated Airflow: 22l/s

Fan Speed: 2,500rpm

Maximum Power Consumption: 13W

Supply Voltage: 230V

Frequency: 50Hz

Sound Pressure Level: 40dB(A) at 1.5 metres under free-air conditions

Movement Sensor: Passive infrared PIR sensor

Maximum Detection Distance: Approximately 4 metres

Run-On Timer: Yes

Timer Adjustment Range: Approximately 1–30 minutes

Operation Indicator: Yes

Back-Draught Shutter: Automatic back-draught shutter

Humidity Sensor: No

Motor Bearings: Long-life ball bearings

Motor Protection: Thermal overload protection

Electrical Insulation: Class II

IP Rating: IPX4

Maximum Air Temperature: 40°C

Housing Material: Injection-moulded plastic

Colour: White

Front Dimensions: 158mm × 158mm

Overall Depth: 85mm

Spigot Diameter: Approximately 98mm

Installation Depth: Approximately 68mm

Weight: Approximately 0.44kg

Frequently Asked Questions

  • What is an extractor fan used for?

    An extractor fan removes humid, stale or polluted air from a room. They are commonly used in bathrooms, kitchens, utility rooms and other areas where moisture, odours or poor airflow can build up.

  • What extractor fan do I need for a bathroom?

    The right bathroom extractor fan depends on the room size, installation location, duct route and control type required. Timer, humidity and low-carbon options are available depending on the project.

  • Can extractor fans help with condensation?

    Yes, extractor fans can help reduce condensation by removing humid air from wet rooms. However, condensation can also be affected by insulation, heating, airflow and overall ventilation.

  • What is a D-MEV fan?

    A D-MEV fan is a decentralised mechanical extract ventilation fan. It usually runs continuously at a low rate, with boost options when more extraction is needed.

  • What is the difference between an extractor fan and an inline fan?

    A standard extractor fan is usually mounted on a wall, window or ceiling. An inline fan is installed within the duct run, often in a loft or ceiling void, and can be useful where a longer duct route is needed.
