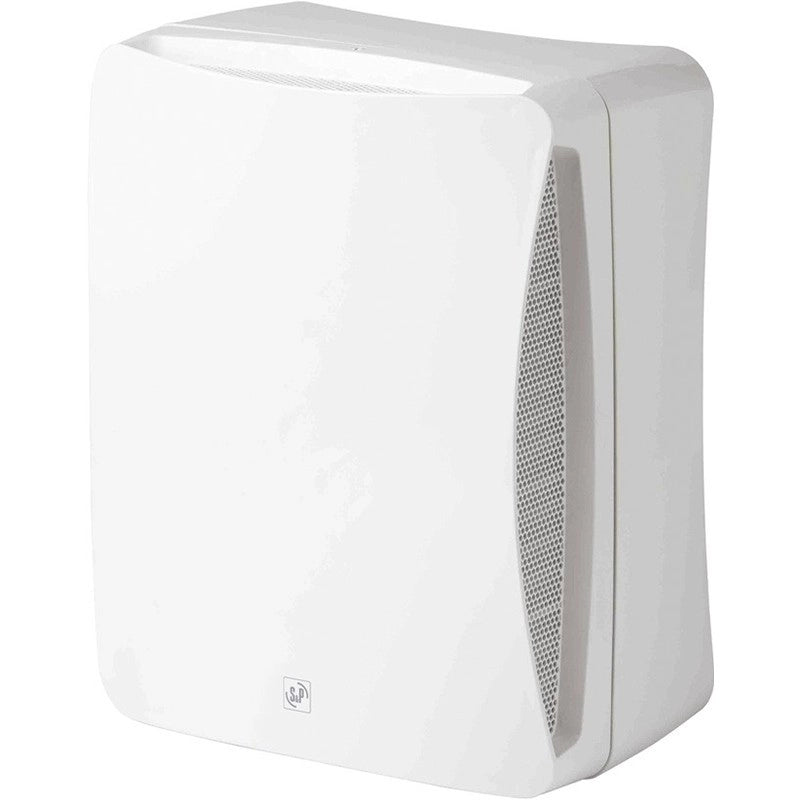

S&P 100mm Centrafugal Fan - 2 speed / Timer - rated 31l/s

S&P 100mm Centrafugal Fan - 2 speed / Timer - rated 31l/s

SKU : EBB-100NT

Overview

The S&P EBB-100NT is a two-speed centrifugal extract fan designed for bathrooms, toilets, utility rooms and other domestic or light-commercial spaces where longer or more restrictive duct runs create higher system resistance.
€146,89 EUR Excl. VAT: €122,41 EUR

Low stock
  • For warranty information, please refer to the manufacturer’s warranty policy or contact them directly.
View full details

Description

Product Part Number

EBB-100NT

Product Overview

The S&P EBB-100NT is a two-speed centrifugal extract fan designed for bathrooms, toilets, utility rooms and other domestic or light-commercial spaces where longer or more restrictive duct runs create higher system resistance.

Its forward-curved centrifugal impeller provides effective airflow against higher static pressure, making it more suitable for demanding ducted installations than a standard axial bathroom fan. The unit can be surface mounted or recessed to suit the available installation space.

The fan delivers up to 110m³/h at high speed and 70m³/h at low speed. An integrated timer allows the fan to continue running at low speed after the connected switch has been turned off, helping clear remaining moisture, stale air and odours from the room.

Four timer settings are available: an automatic proportional mode or fixed run-on periods of 2, 15 or 30 minutes. In automatic mode, the run-on period is calculated according to how long the fan was operating, up to a maximum of 30 minutes.

The EBB-100NT includes automatic back-draught shutters for both the 80mm and 100mm outlet options, helping prevent outside air from entering and reducing heat loss while the fan is switched off. Two metal filters help prevent dust and dirt from entering the fan.

Technical Specification

Manufacturer: Soler & Palau

Fan Type: Centrifugal extract fan

Application: Bathrooms, toilets, utility rooms and light-commercial spaces

Installation: Suitable for surface-mounted or recessed installation

Operating Speeds: 2 speed

High-Speed Airflow: 110m³/h

High-Speed Airflow: Approximately 30.6l/s

Low-Speed Airflow: 70m³/h

Low-Speed Airflow: Approximately 19.4l/s

Listed Rated Airflow: 31l/s

High-Speed Motor Speed: 1,500rpm

Low-Speed Motor Speed: 1,040rpm

High-Speed Power Consumption: 29W

Low-Speed Power Consumption: 15W

Supply Voltage: 230V

Frequency: 50Hz

High-Speed Sound Pressure Level: 44dB(A) at 1.5 metres

Low-Speed Sound Pressure Level: 34dB(A) at 1.5 metres

Impeller Type: Forward-curved centrifugal impeller

Timer: Yes

Timer Operation: Run-on operation at low speed

Timer Settings: Automatic proportional, 2 minutes, 15 minutes or 30 minutes

Maximum Automatic Run-On Time: 30 minutes

Duct Connection: 80mm or 100mm diameter

Back-Draught Shutter: Automatic back-draught shutter

Filters: Two metal filters

Humidity Sensor: No

Motor Protection: Thermal overload protection

Electrical Insulation: Class II

IP Rating: IP44

Maximum Air Temperature: 40°C

Body Material: Polypropylene

Impeller Material: Polypropylene

Colour: White

Front Width: 211mm

Front Height: 268mm

Overall Depth with 100mm Outlet: 147mm

Overall Depth with 80mm Outlet: 139mm

Main Body Depth: 127mm

Outlet Diameter: 98mm or 79mm

Weight: Approximately 1.8kg

Frequently Asked Questions

  • What is an extractor fan used for?

    An extractor fan removes humid, stale or polluted air from a room. They are commonly used in bathrooms, kitchens, utility rooms and other areas where moisture, odours or poor airflow can build up.

  • What extractor fan do I need for a bathroom?

    The right bathroom extractor fan depends on the room size, installation location, duct route and control type required. Timer, humidity and low-carbon options are available depending on the project.

  • Can extractor fans help with condensation?

    Yes, extractor fans can help reduce condensation by removing humid air from wet rooms. However, condensation can also be affected by insulation, heating, airflow and overall ventilation.

  • What is a D-MEV fan?

    A D-MEV fan is a decentralised mechanical extract ventilation fan. It usually runs continuously at a low rate, with boost options when more extraction is needed.

  • What is the difference between an extractor fan and an inline fan?

    A standard extractor fan is usually mounted on a wall, window or ceiling. An inline fan is installed within the duct run, often in a loft or ceiling void, and can be useful where a longer duct route is needed.
