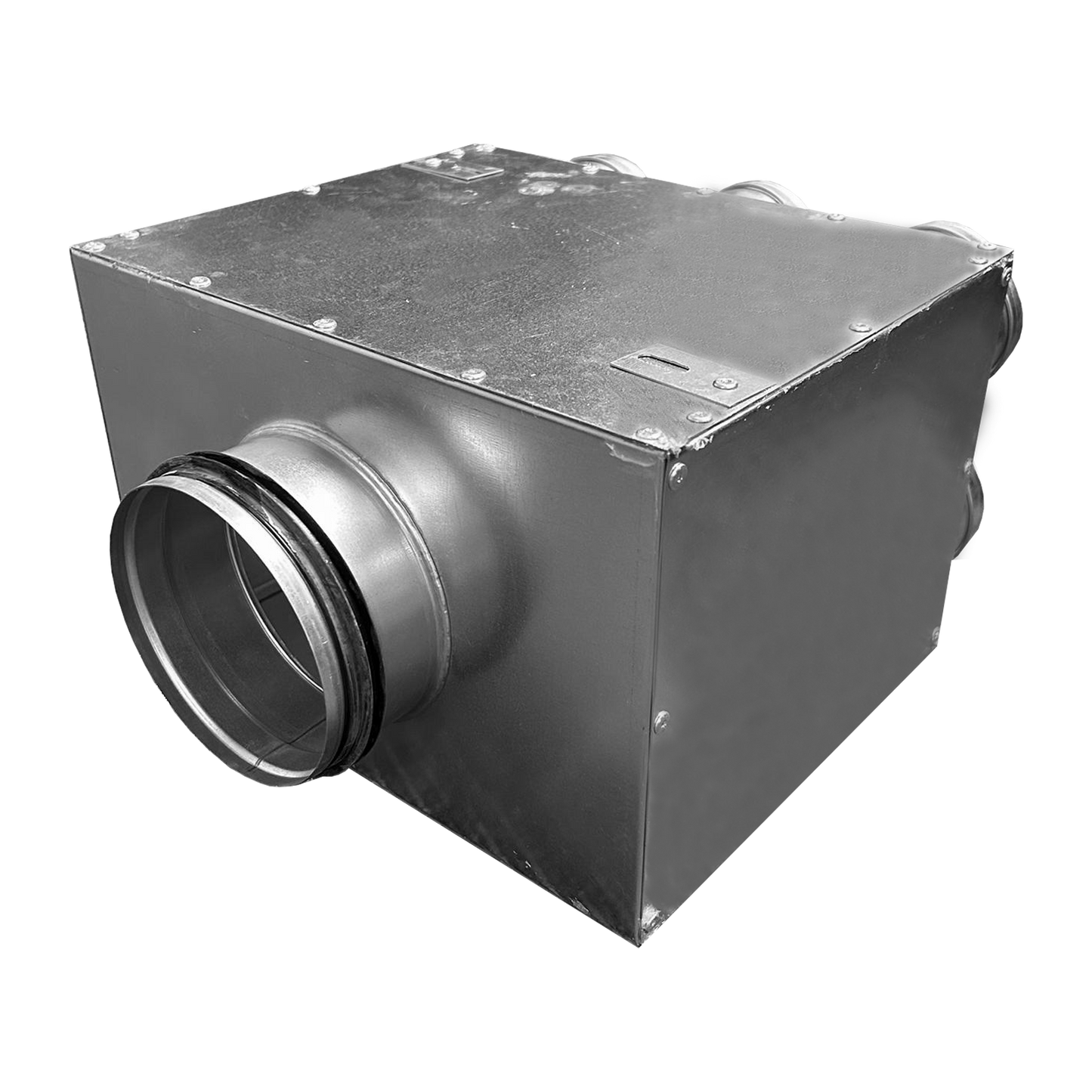

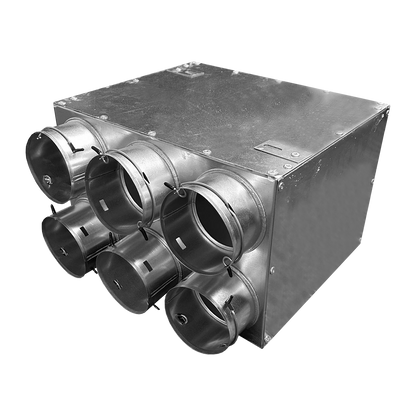

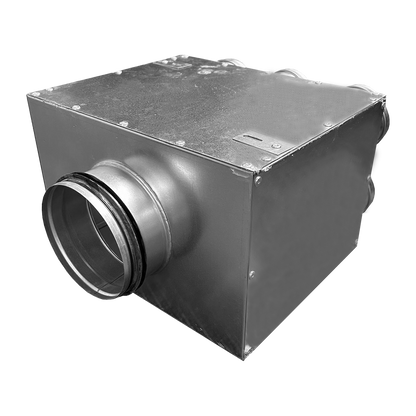

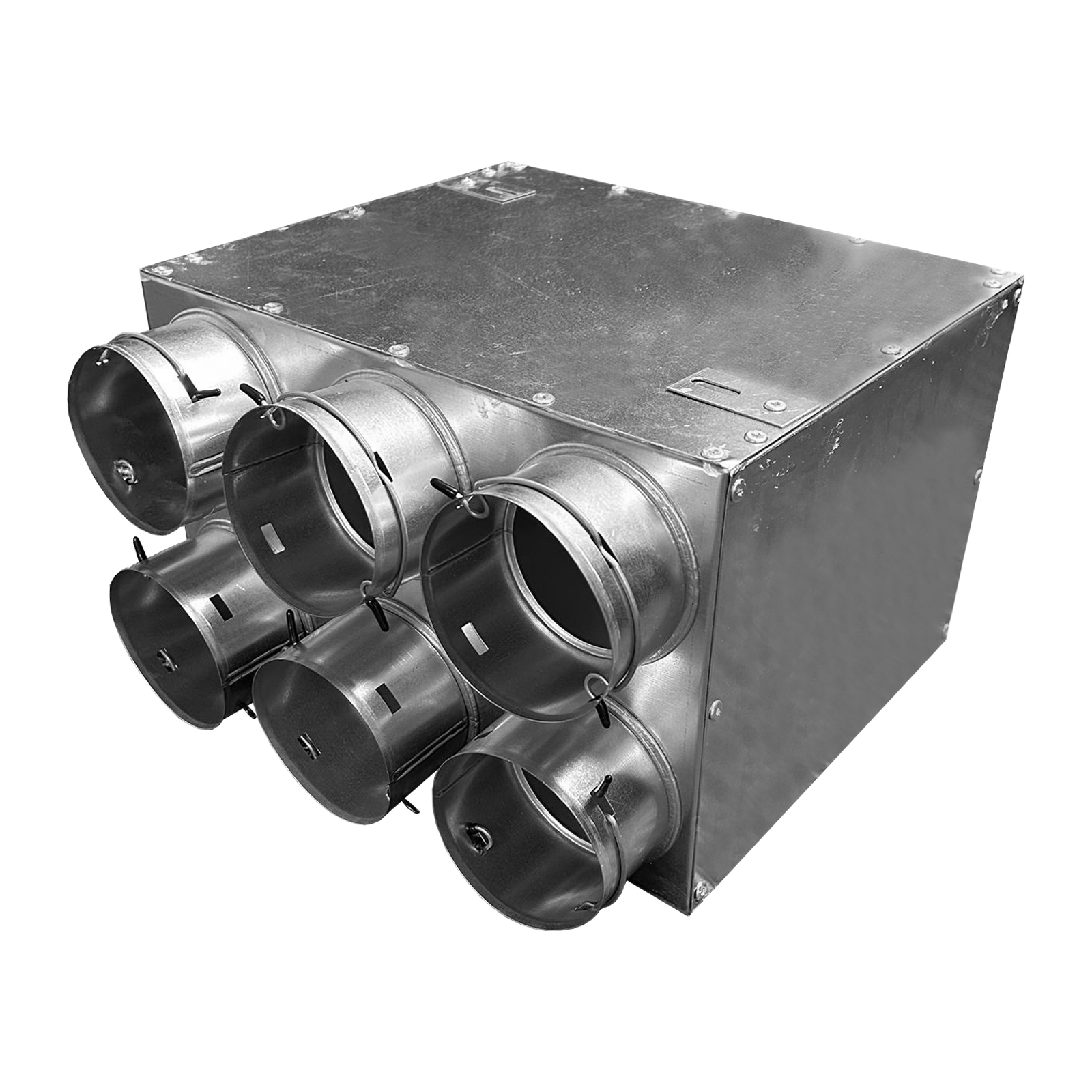

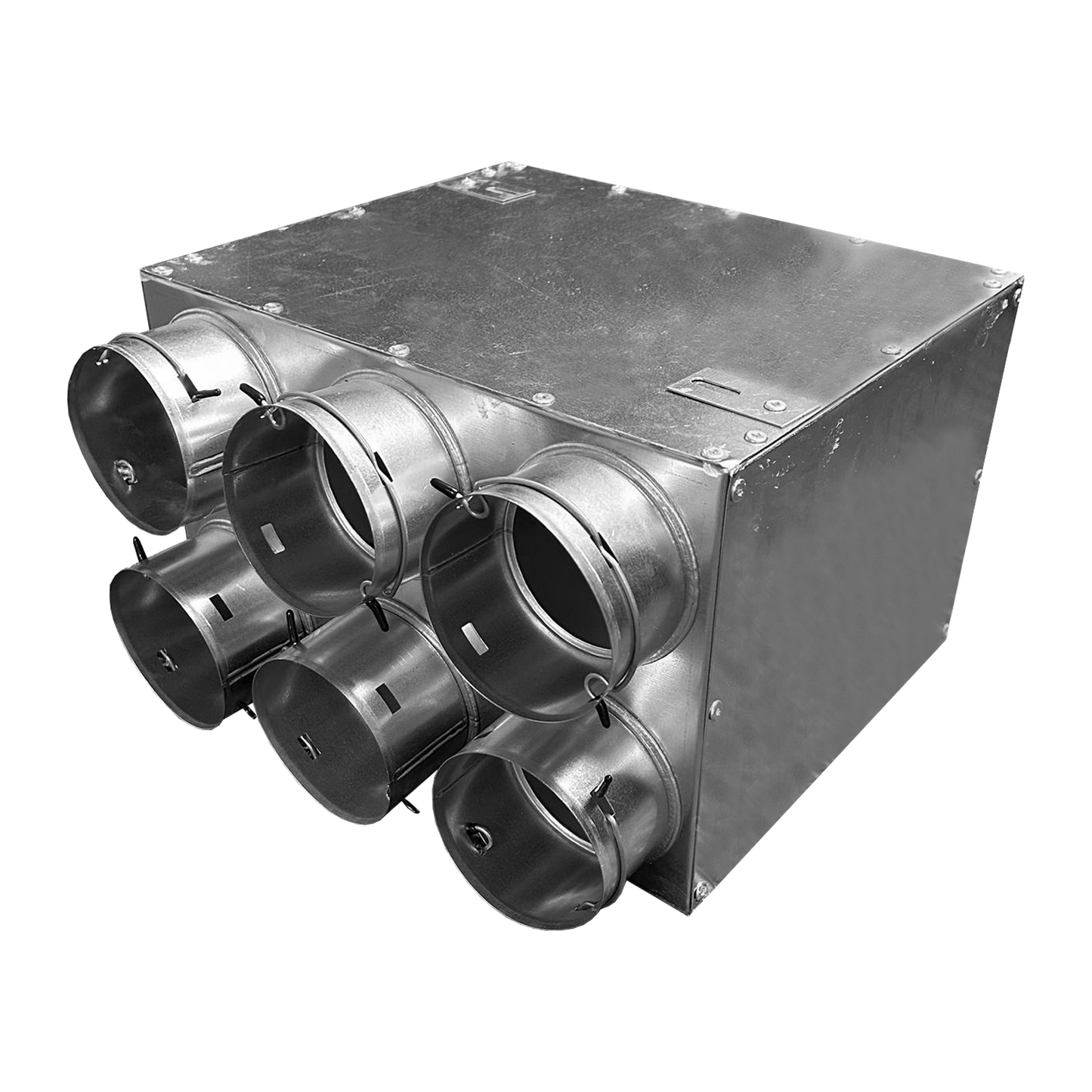

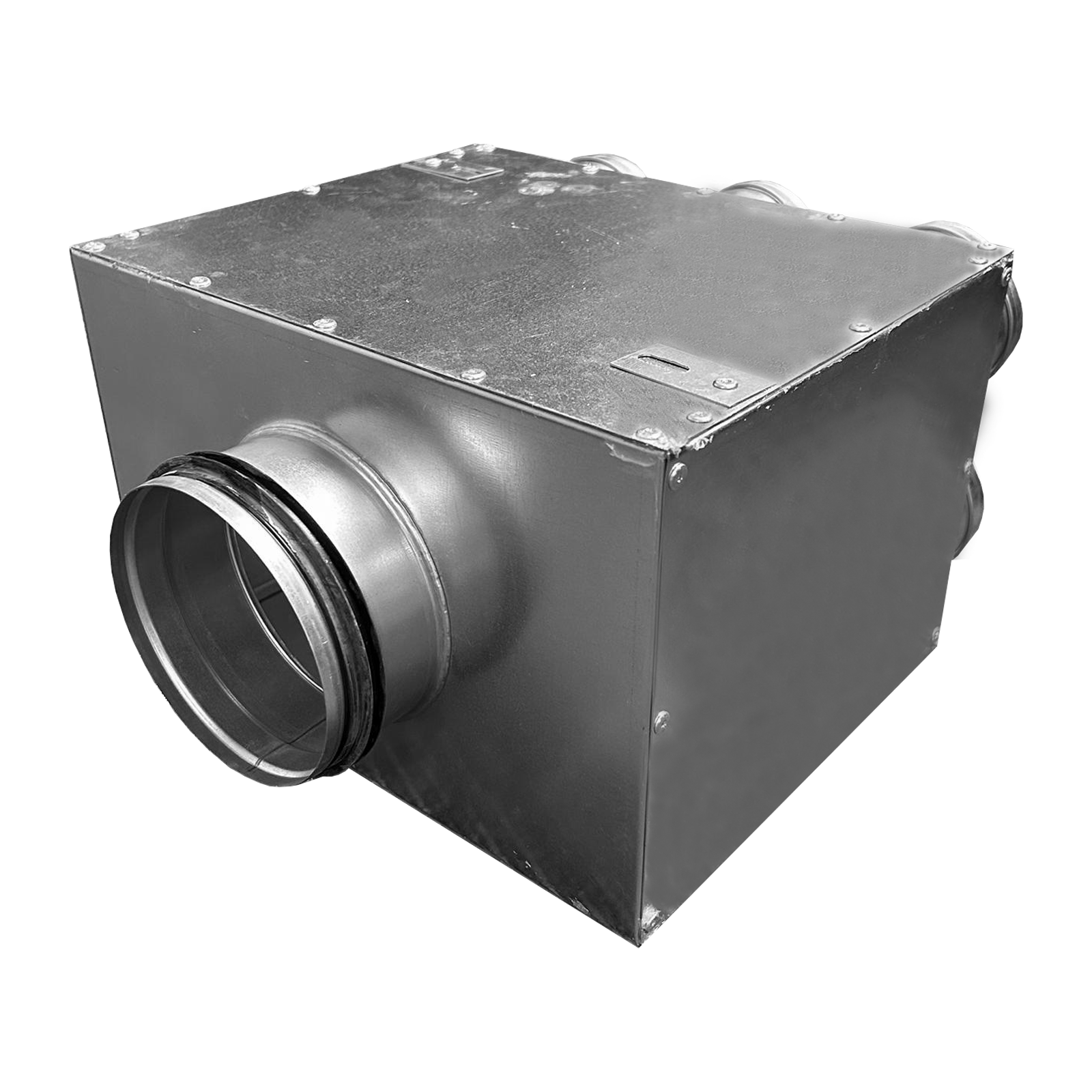

Quiet-Vent 6 Pt Rear Entry Distribution box -125 spigot (75mm) with 2 x blanking caps

Quiet-Vent 6 Pt Rear Entry Distribution box -125 spigot (75mm) with 2 x blanking caps

SKU : QV75-06125RE

Overview

The Quiet-Vent 6 Point Rear Entry Distribution Box is a compact and efficient solution for distributing airflow within residential ventilation systems. Designed with a rear entry configuration, it allows for streamlined duct routing where space is limited, making it ideal for discreet installations in ceilings, floors, or service voids.
€69,51 EUR Excl. VAT: €57,93 EUR

In Stock
  • For warranty information, please refer to the manufacturer’s warranty policy or contact them directly.
View full details

Description

Product Part Number

QV75-06125RE

Product Overview

The Quiet-Vent 6 Point Rear Entry Distribution Box is a compact and efficient solution for distributing airflow within residential ventilation systems. Designed with a rear entry configuration, it allows for streamlined duct routing where space is limited, making it ideal for discreet installations in ceilings, floors, or service voids.

Featuring 6 connection points for 75mm radial ducting, this manifold provides reliable and balanced airflow across multiple rooms. The 125mm spigot ensures a secure connection to the main duct system, while the included 2 blanking caps allow unused outlets to be sealed, maintaining system efficiency and control.

Built for durability and compatibility with Quiet-Vent systems, this distribution box is well-suited for MVHR and other ventilation applications requiring a smaller, space-saving manifold.

Technical Specification

  • Product Type: Rear Entry Distribution Box / Manifold
  • Number of Connections: 6 x 75mm outlets
  • Spigot Size: 125mm
  • Duct Compatibility: 75mm radial ducting systems
  • Material: Galvanised steel
  • Installation Location: Ceiling, floor, or service void
  • Entry Type: Rear entry
  • Blanking Caps Included: 2
  • Airtight Requirement: Sealing rings required for optimal performance
  • Application: MVHR and general ventilation systems

Frequently Asked Questions

  • What is semi rigid radial ductwork?

    Semi rigid radial ductwork is a flexible but structured ducting system used to move air between a ventilation unit and individual rooms. It is commonly used in MVHR, MEV and other domestic ventilation systems.

  • What is radial ductwork used for?

    Radial ductwork is used to create individual duct runs from a manifold or distribution box to different rooms. This can help simplify the duct layout and support balanced airflow across the property.

  • What fittings are needed for semi rigid ductwork?

    A semi rigid ductwork system may require manifolds, plenums, connectors, bends, sealing rings, clips, blanking caps and other accessories depending on the layout and installation.
