Quiet-Vent 6 Point 75mm Top Entry Distribution Box 125mm Spigot

Quiet-Vent 6 Point 75mm Top Entry Distribution Box 125mm Spigot

SKU : QV75-06125TE-1

Overview

Overview The Quiet-Vent 6-Point Top Entry Distribution Box with 125mm Spigot is designed to distribute airflow efficiently within radial MVHR (Mechanical Ventilation with Heat Recovery) systems. Featuring six 75mm side connections and a central circular access opening, this metal distribution box provides a practical solution for connecting and managing ventilation ductwork in residential installations. Suitable for ceiling or floor void installation, it supports flexible ductwork layouts while helping maintain an organised and efficient ventilation system.
€60,63 EUR Excl. VAT: €50,53 EUR

In Stock
  • For warranty information, please refer to the manufacturer’s warranty policy or contact them directly.
View full details

Description

Description

Product Part Number

QV75-06125TE-1

Product Overview

The Quiet-Vent 6-Point Top Entry Distribution Box with 125mm Spigot is designed to distribute airflow efficiently within radial MVHR (Mechanical Ventilation with Heat Recovery) systems. Featuring six 75mm side connections and a central circular access opening, this metal distribution box provides a practical solution for connecting and managing ventilation ductwork in residential installations.

Suitable for ceiling or floor void installation, it supports flexible ductwork layouts while helping maintain an organised and efficient ventilation system.

Key Features

  • 6 Connection Points – Accommodates multiple radial duct connections for flexible airflow distribution.

  • 125mm Main Spigot – Connects the distribution box to the main ventilation ductwork.

  • Metal Construction – Provides a durable housing for residential ventilation installations.

  • Flexible Installation – Suitable for integration into ceiling or floor voids.

  • Quiet-Vent Compatibility – Designed for use with compatible Quiet-Vent radial ducting.

  • Blanking Caps Included – Supplied with two blanking caps for covering unused connections where required.

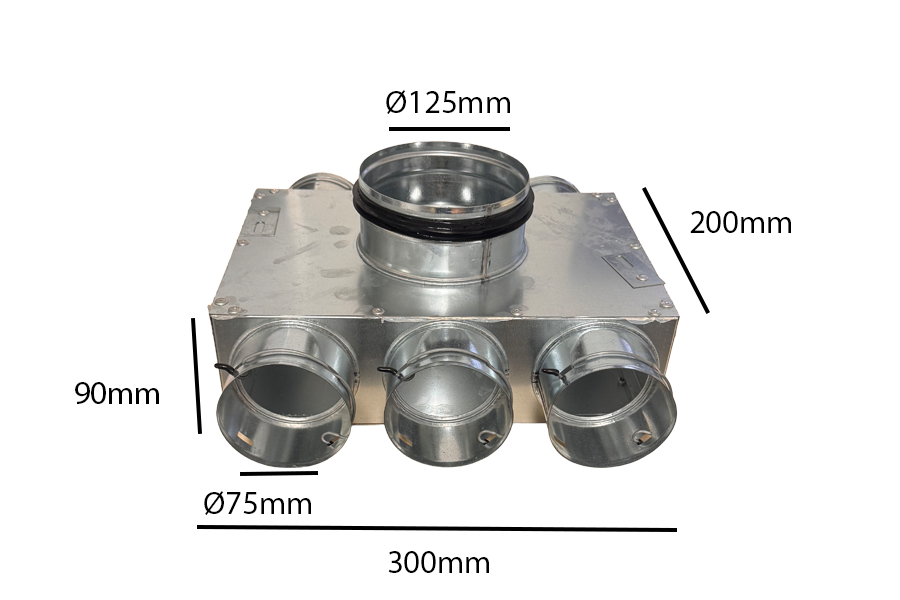

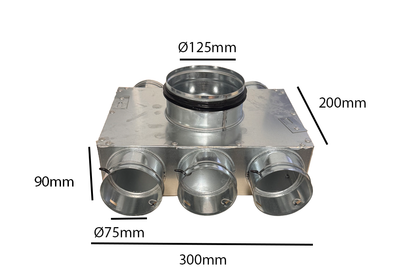

Specifications

  • Product Type: MVHR Distribution Box

  • Brand: Quiet-Vent

  • Product Code: QV75-06125TE-1

  • Connection Points: 6

  • Radial Duct Connection Size: 75mm

  • Main Spigot Size: 125mm

  • Length: 300mm

  • Width: 200mm

  • Height: 90mm

  • Material: Metal

Performance and Benefits

  • Efficient Airflow Distribution – Connects the main ventilation ductwork to multiple radial duct runs.

  • Installation Flexibility – Helps accommodate different ductwork layouts in residential MVHR systems.

  • Neat Ductwork Organisation – Provides a central connection point for managing multiple ventilation ducts.

  • Reliable Construction – Built for use in residential ventilation installations.

Installation

The Quiet-Vent 6-Point Top Entry Distribution Box is suitable for installation within ceiling or floor voids. Compatible 75mm radial ducting and the appropriate 125mm main duct connection should be used.

Sealing rings are required for compatible radial duct connections to help achieve airtight joints. Use the supplied blanking caps to close off unused connections where appropriate.

Please note: Confirm the connection arrangement and installation clearances before fitting to ensure compatibility with your ventilation system.
