Quiet-Vent 90mm 4 point Adjustable Top entry Distribution box 125mm Spigot

Quiet-Vent 90mm 4 Point Adjustable Top Entry Distribution Box 125mm Spigot

Product Part Number

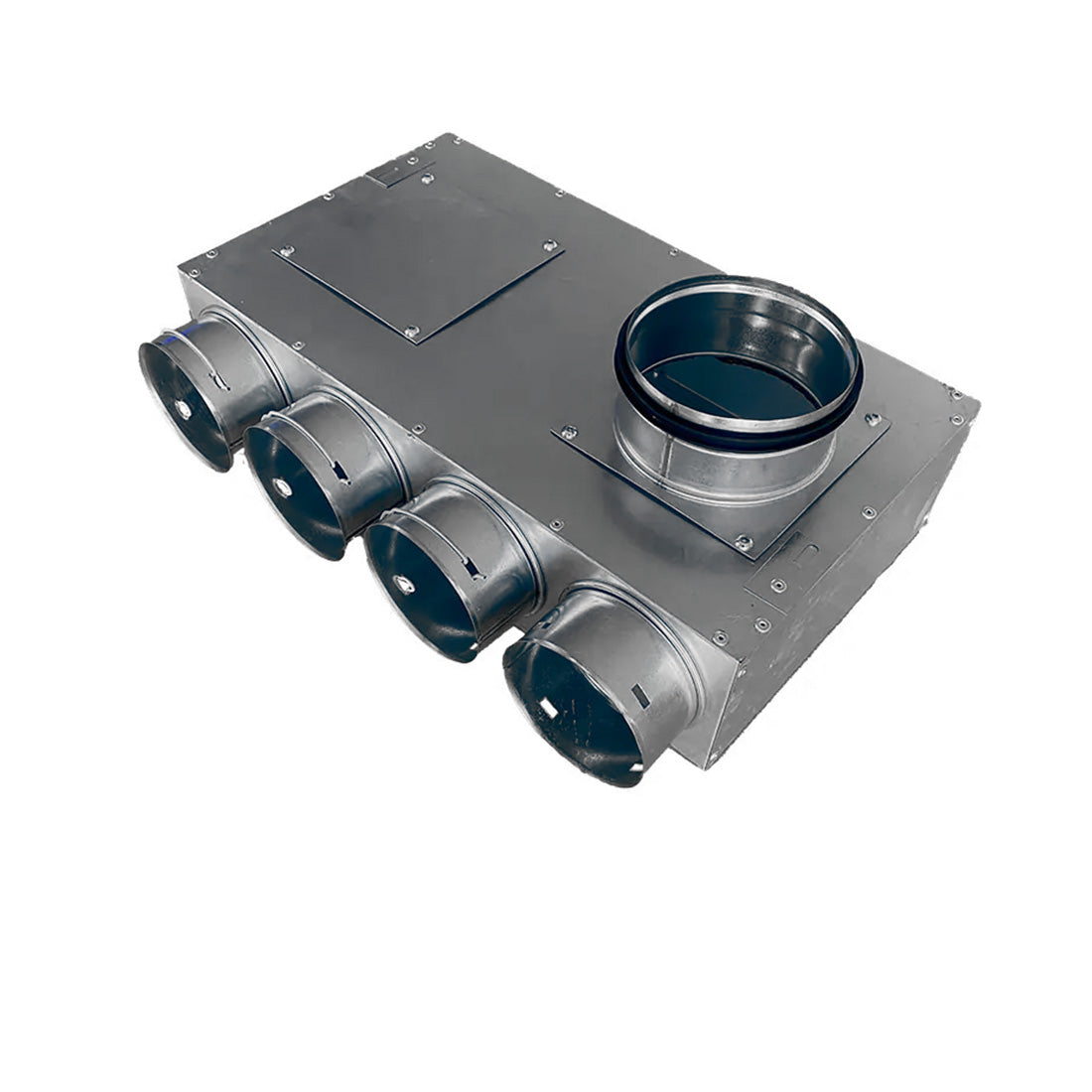

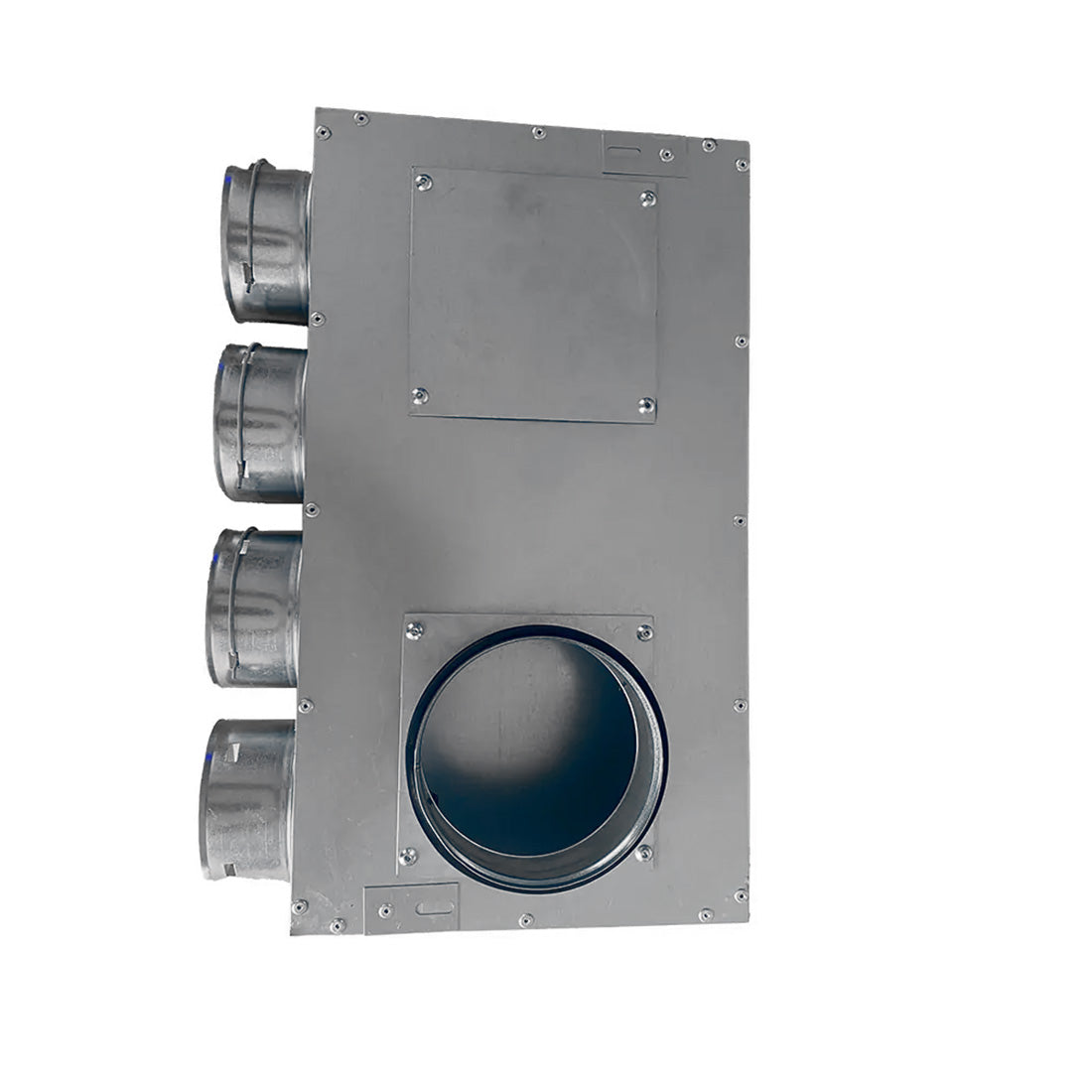

Quiet-Vent 90mm 4 Point Adjustable Top Entry Distribution Box - QV90-04125MTE

Product Overview

The Quiet-Vent 90mm 4 Point Adjustable Top Entry Distribution Box offers flexible airflow distribution with four adjustable points and a 125mm spigot. Designed for both ceiling and floor installations, this box requires sealing rings for optimal performance. Unused vents must be sealed with blanking caps to maintain an airtight seal. Ideal for systems needing versatile and efficient airflow management.

Key Features

✔ 4 Adjustable Points – Customizable airflow distribution for varied installation needs
✔ 125mm Spigot – Compatible with systems requiring a 125mm connection
✔ Sealing Rings Required – Ensures airtight installation for maximum efficiency
✔ Blanking Caps Included – Covers unused vents to maintain airtightness
✔ Flexible Installation – Can be mounted on the ceiling or floor, with easy radial pipe insertion

Specifications

• Dimensions (L x W x H): 400mm x 220mm x 110mm
• Spigot Size: 125mm

Installation Guide

1. Secure the distribution box to the ceiling or floor
2. Insert the radial pipe until the clips engage
3. Ensure the system is airtight by using sealing rings
4. Cover all unused vents with blanking caps
