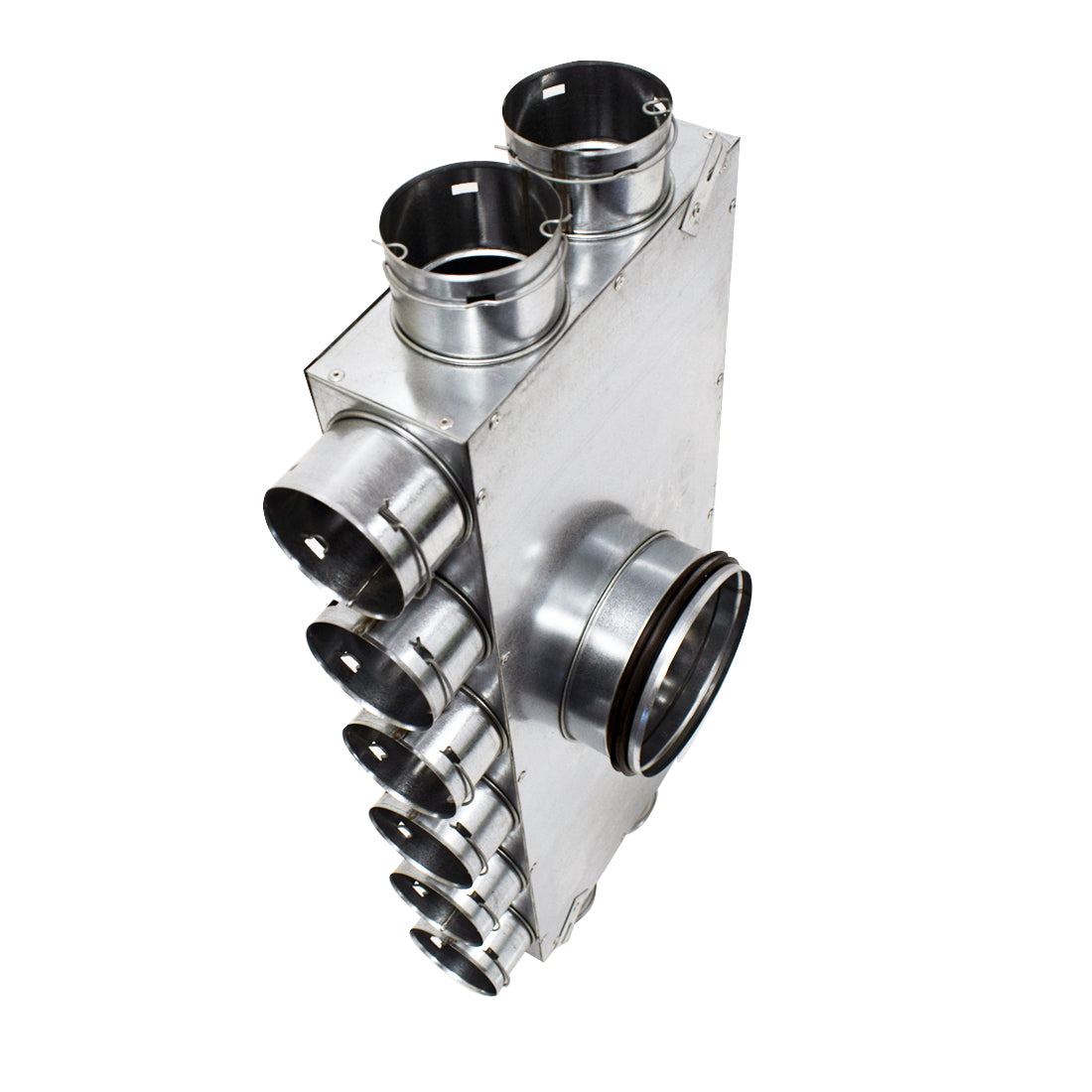

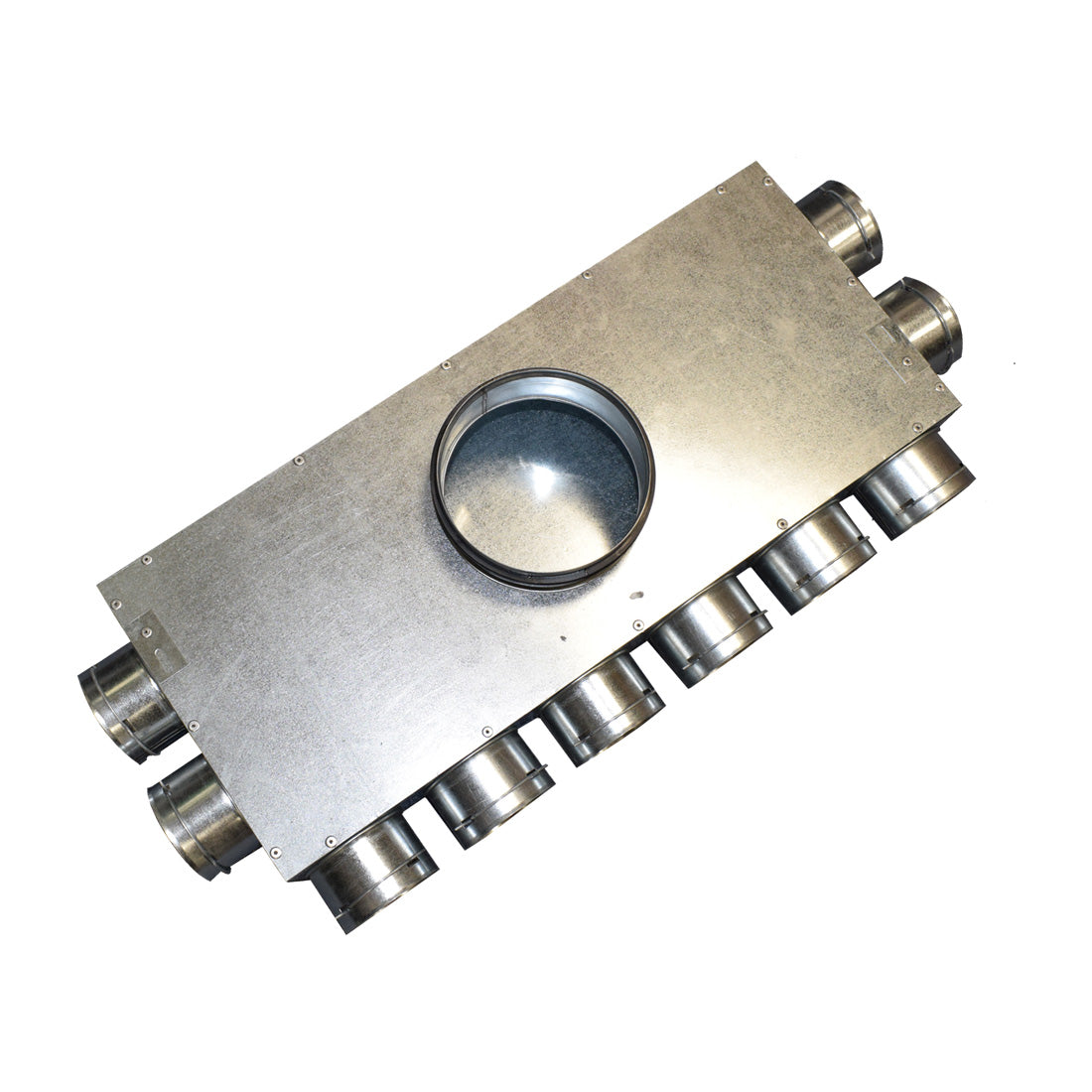

Quiet-Vent 90mm 10 Point Top Entry Distribution box 180mm spigot

Quiet-Vent 90mm 10 Point Top Entry Distribution Box 180mm Spigot

Product Part Number

Quiet-Vent 90mm 10 Point Top Entry Distribution Box - QV90-10180TE

Product Overview

The Quiet-Vent 90mm 10 Point Top Entry Distribution Box is designed to provide flexible airflow control with ten adjustable points and a 180mm spigot. This box is ideal for larger or more complex ventilation systems, allowing for efficient distribution of air across multiple outlets. It requires sealing rings for optimal performance and all unused vents must be covered with blanking caps for an airtight system. The box is suitable for both ceiling and floor installations.

Key Features

✔ 10 Adjustable Points – Provides extensive customization for airflow distribution
✔ 180mm Spigot – Compatible with systems requiring a 180mm connection
✔ Sealing Rings Required – Ensures an airtight seal for maximum system efficiency
✔ Blanking Caps Included – Covers unused vents to maintain optimal performance
✔ Flexible Installation – Can be easily mounted on the ceiling or floor, with radial pipe insertion

Specifications

• Dimensions (L x W x H): 660mm x 250mm x 110mm
• Spigot Size: 180mm

Installation Guide

1. Secure the distribution box to the ceiling or floor
2. Insert the radial pipe until the clips engage
3. Ensure the system is airtight by using sealing rings
4. Cover all unused vents with blanking caps
