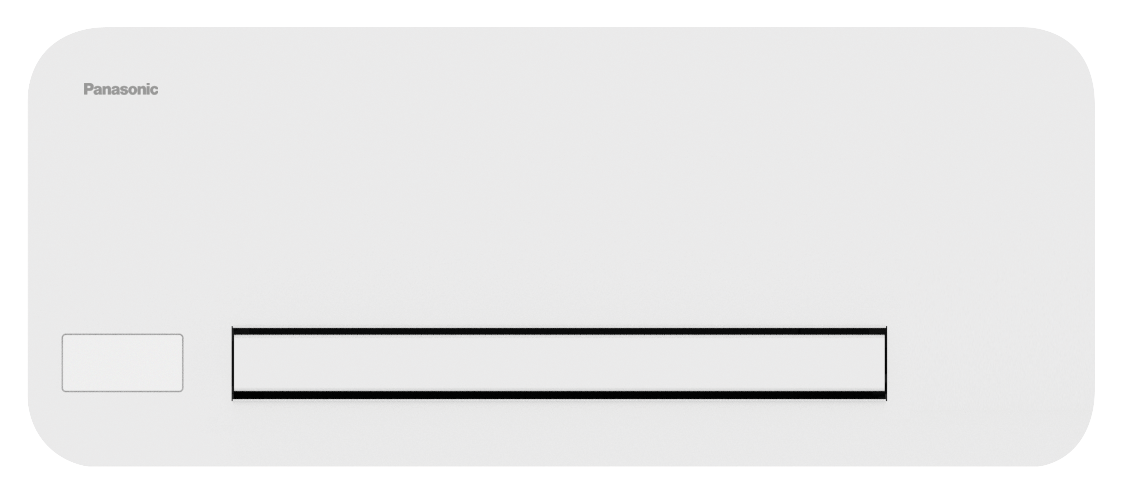

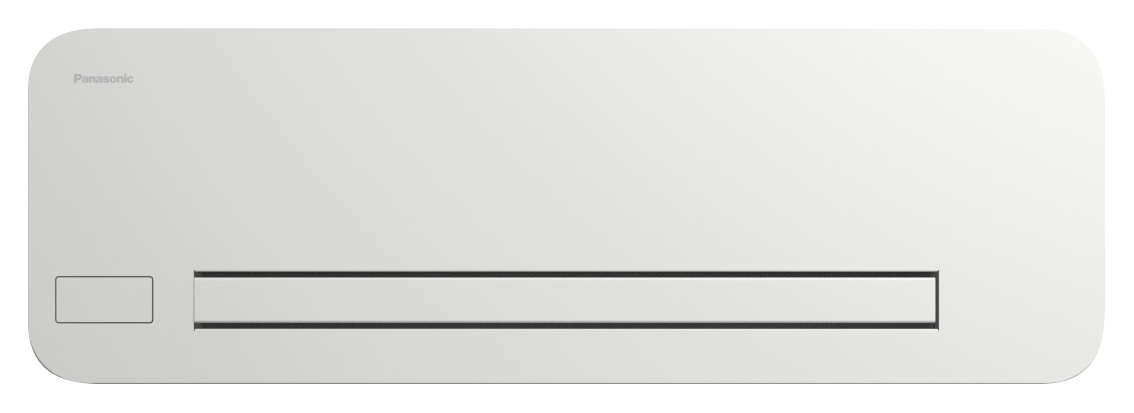

Panasonic Aquarea Air Smart fan coil wall-mounted

SKU : P-FMM10DC-QNE

Overview

The Aquarea Air Smart fan coil delivers both heating and cooling in a slim, compact unit. When paired with an Aquarea Heat Pump, it ensures maximum energy efficiency and comfort.

€1.093,10 EUR Excl. VAT: €888,70 EUR

For warranty information, please refer to the manufacturer’s warranty policy or contact them directly.

Any questions? Reach out to our team

View full details

Description

Product Part Number

Aquarea Air Smart Fan Coil 1.45kW heat 1.24kW Cool - P-FMM10DC-QNE
Aquarea Air Smart Fan Coil 1.93kW heat 1.61kW Cool - P-FMM15DC-QNE
Aquarea Air Smart Fan Coil 2.28kW heat 1.94kW Cool - P-FMM20DC-QNE
Aquarea Air Smart Fan Coil 4.44kW heat 3.94kW Cool - P-FMM40DC-QNE

Product Overview

The Aquarea Air Smart fan coil delivers both heating and cooling in a slim, compact unit. When paired with an Aquarea Heat Pump, it ensures maximum energy efficiency and comfort.

Key Features

- Ultra-slim chassis: only 128 mm

- Color: RAL 9003

- DC inverter technology for optimised comfort and energy savings

- Self-modulating air flow with PI logic for smooth operation

- Continuously modulated fan speed (not stepped) → reduced noise and draft

- Flexible installation: left or right water connections

- Control options: on-board, wall-mounted, or via PCB (0–10V analog input)

- Compatible with 2-way or 3-way valve accessories

Technical Specifications

Dimension	P-FMM10	P-FMM40
Height	335 mm	335 mm
Width	815 mm	1,215 mm
Depth	128 mm	215 mm
Net weight	14 kg	24 kg

Model Information

Model	P-FMM10	P-FMM40
Cooling capacity (kW)	Min: 0.49 / Med: 0.88 / Max: 1.24	Min: 1.32 / Med: 2.66 / Max: 3.94
Sensible capacity (kW)	Min: 0.37 / Med: 0.70 / Max: 0.98	Min: 1.08 / Med: 2.05 / Max: 2.92
Water flow cooling (l/h)	Min: 84 / Med: 150.8 / Max: 212.4	Min: 226.4 / Med: 455.3 / Max: 674.3
Pressure drop cooling (kPa)	Min: 4.8 / Med: 10.5 / Max: 11.7	Min: 1.8 / Med: 6.0 / Max: 12.1
Heating capacity (kW)	Min: 0.54 / Med: 0.98 / Max: 1.45	Min: 1.63 / Med: 3.04 / Max: 4.44
Water flow heating (l/h)	Min: 97 / Med: 176.3 / Max: 264.5	Min: 296.4 / Med: 547.0 / Max: 800.9
Pressure drop heating (kPa)	Min: 5.1 / Med: 12.0 / Max: 16.3	Min: 2.3 / Med: 6.9 / Max: 14.1

Sound Performance

Level	P-FMM10	P-FMM40
Sound power dB(A)	Min: 35 / Med: 46 / Max: 53	Min: 38 / Med: 48 / Max: 62
Sound pressure dB(A) (4)	Min: 25 / Med: 33 / Max: 40	Min: 27 / Med: 37 / Max: 51

Ventilation

Air Flow	P-FMM10	P-FMM40
Min	84 m³/h	230 m³/h
Med	155 m³/h	480 m³/h
Max	228 m³/h	788 m³/h
