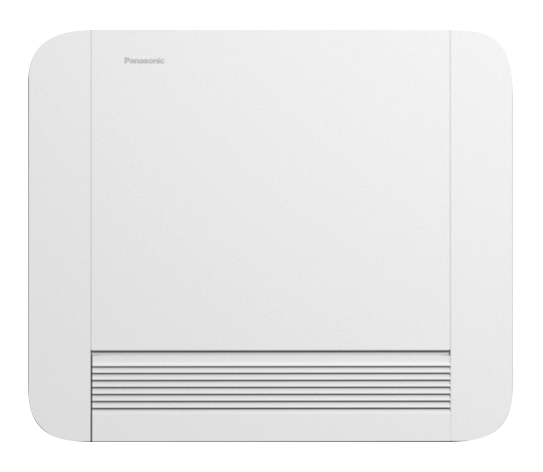

• Panasonic Aquarea Air Smart Fan Coil – Floor Standing – Left Hand
1 1

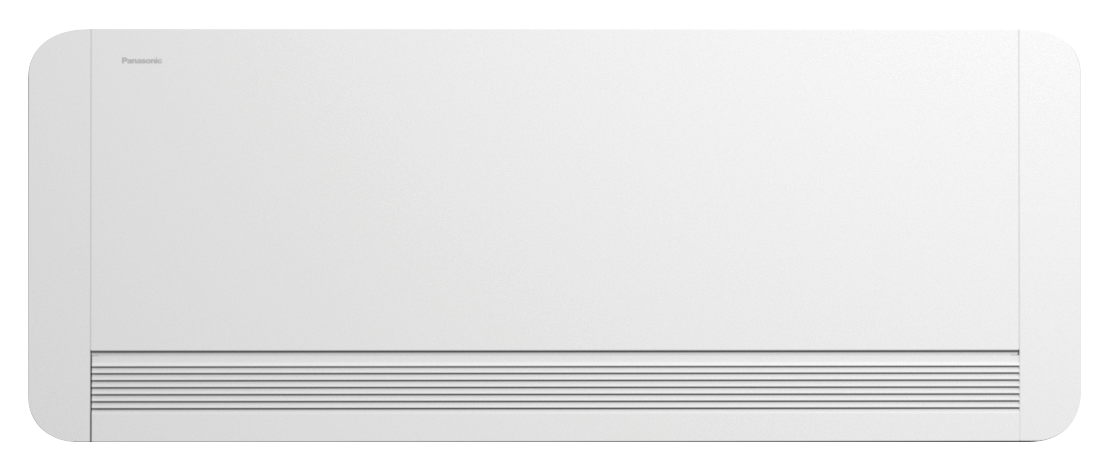

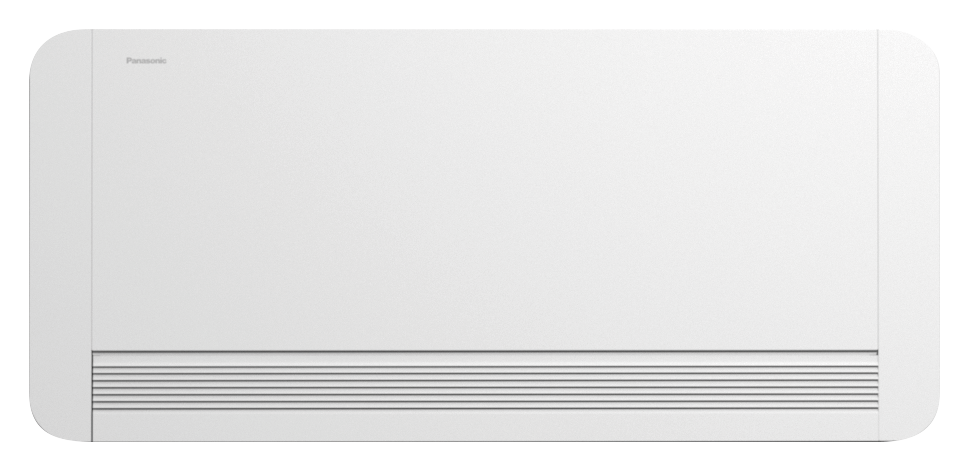

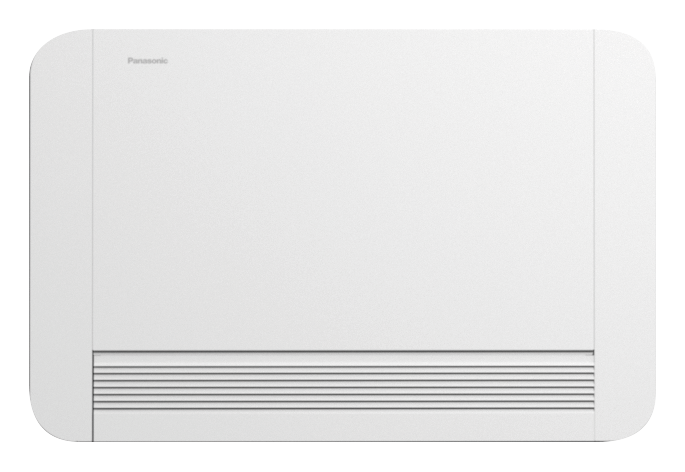

Panasonic Aquarea Air Smart fan coil floor standing

Panasonic Aquarea Air Smart fan coil floor standing

SKU : P-FAL10SC-HLE

Overview

The Aquarea Air Smart floor-standing fan coil provides both heating and cooling in a slim, elegant design. When combined with an Aquarea Heat Pump, it ensures maximum comfort and energy efficiency.
€1.047,97 EUR Excl. VAT: €852,01 EUR

In Stock
  • For warranty information, please refer to the manufacturer’s warranty policy or contact them directly.
View full details

Description

Product Part Number

Aquarea Air Smart Fan Coil 1.0kW heat 0.91kW Cool - P-FAL10SC-HLE
Aquarea Air Smart Fan Coil 2.19kW heat 2.12kW Cool - P-FAL20SC-HLE
Aquarea Air Smart Fan Coil 2.99kW heat 2.81kW Cool - P-FAL30SC-HLE
Aquarea Air Smart Fan Coil 3.73kW heat 3.3kW Cool - P-FAL35SC-HLE
Aquarea Air Smart Fan Coil 4.23kW heat 3.71kW Cool - P-FAL40SC-HLE

Product Overview

The Aquarea Air Smart floor-standing fan coil provides both heating and cooling in a slim, elegant design. When combined with an Aquarea Heat Pump, it ensures maximum comfort and energy efficiency.

Key Features

- Slim chassis: only 119 mm

- Color: RAL 9003

- Sophisticated, slim design with durable metal body

- DC inverter technology for improved comfort and lower energy use

- Self-modulated air flow (PI logic): smooth, continuous regulation (no stepped speeds)

- Reduced noise and draft effect thanks to proportional and integrative control

- Flexible installation: left or right water connections

- Optional 2-way or 3-way valves

- Control options:
a. On-board display with Modbus or Wi-Fi
b. Wall-mounted control with Modbus or Wi-Fi
c. PCB for analog control (0–10V)

Minimal visual impact: designed to integrate seamlessly into any home or office environment.

Technical Specifications

Dimensions

Model Height (mm) Width (mm) Depth (mm) Net Weight (kg)
P-FAL10 580 680 119 13
P-FAL20 580 880 119 16
P-FAL30 580 1,080 119 18
P-FAL35 580 1,280 119 20
P-FAL40 580 1,480 119 23

Model Information

Model Capacity (kW)
P-FAL10 0.91 kW
P-FAL20 2.12 kW
P-FAL30 2.81 kW
P-FAL35 3.30 kW
P-FAL40 3.71 kW



Cooling Performance

Model Cooling Capacity (kW) Sensible Capacity (kW) Water Flow (l/h) Pressure Drop (kPa)
P-FAL10 0.43 – 0.91 0.29 – 0.71 73.7 – 155.9 5.7 – 12.1
P-FAL20 0.75 – 2.12 0.59 – 1.54 128.5 – 363.2 1.9 – 8.2
P-FAL30 1.15 – 2.81 0.83 – 2.11 197.0 – 481.4 2.7 – 17.1
P-FAL35 1.32 – 3.30 1.02 – 2.65 226.2 – 565.4 2.5 – 18.0
P-FAL40 1.36 – 3.71 1.05 – 2.90 — —



Heating Performance

Model Heating Capacity (kW) Water Flow (l/h) Pressure Drop (kPa)
P-FAL10 0.37 – 1.00 65.1 – 179.9 2.6 – 9.1
P-FAL20 0.82 – 2.19 144.6 – 389.7 1.5 – 9.2
P-FAL30 1.19 – 2.99 211.6 – 532.6 2.7 – 19.1
P-FAL35 1.45 – 3.73 259.2 – 671.9 3.0 – 21.2
P-FAL40 1.47 – 4.23 — —



Sound Levels

Model Sound Power dB(A) Sound Pressure dB(A) (4)
P-FAL10 37–54 24–41
P-FAL20 37–54 25–42
P-FAL30 37–57 26–44
P-FAL35 37–55 26–46
P-FAL40 37–58 28–47
