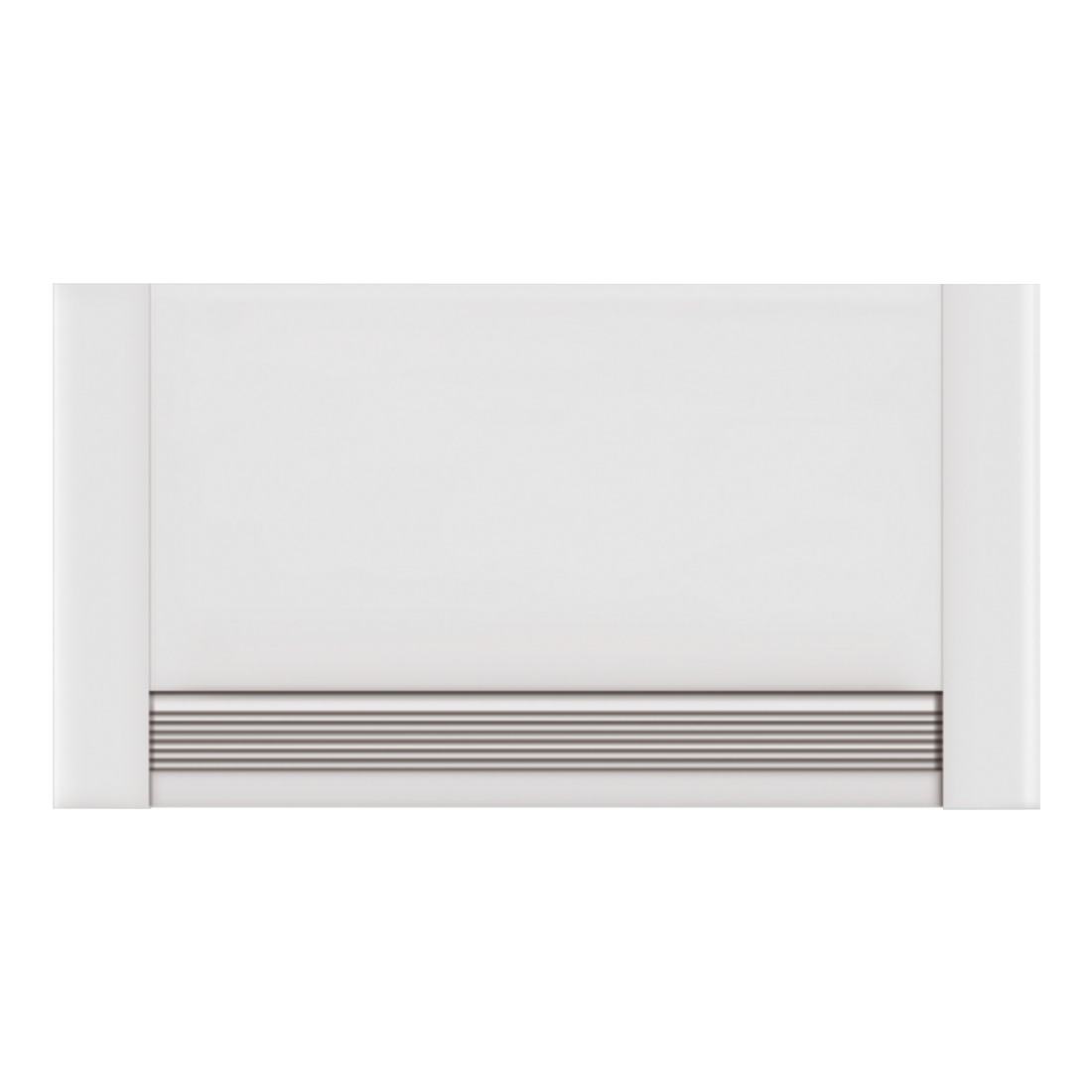

Panasonic 700 Smart wall mounted fan coil

Product Part Number

PAW-AAIR-700-2

Product Overview

The Panasonic PAW-AAIR-700-2 is a stylish, floor-standing smart fan coil unit designed to deliver efficient heating, cooling, and dehumidification when paired with low-temperature systems such as Panasonic Aquarea heat pumps. With a slimline depth of just 129 mm, it is one of the most compact units in its class, allowing it to blend seamlessly into modern residential interiors.

The unit features a high-efficiency, low-wattage motor with continuously modulated fan speed controlled via proportional-integral logic, ensuring precise temperature regulation and enhanced humidity control, particularly in summer operation. Four selectable operating modes — Auto, Silent, Night-time, and Maximum — allow the system to balance comfort and acoustics to suit different living conditions.

Supplied with a touch-screen thermostat and an integrated 3-way valve as standard, the PAW-AAIR-700-2 simplifies installation and system integration, even where multiple fan coils are installed. Its elegant design, quiet operation, and efficient performance make it an ideal solution for energy-efficient homes seeking discreet, responsive climate control.

Technical Specification

General

• Manufacturer: Panasonic
• Product Type: Smart floor-standing fan coil unit
• Manufacturer Model: PAW-AAIR-700-2
• Rated Capacity: 1.1 kW
• Net Weight: 20 kg

Dimensions

• Height: 935 mm
• Width: 579 mm
• Depth: 129 mm

Acoustic Performance

• Sound Pressure Level (Low): 24 dB(A)
• Sound Pressure Level (Medium): 36 dB(A)
• Sound Pressure Level (High): 42 dB(A)

Electrical

• Maximum Input Power (Low): 14 W
• Maximum Input Power (Medium): 18 W
• Maximum Input Power (High): 22 W

Airflow

• Airflow (Low): 2.6 m³/min
• Airflow (Medium): 4.2 m³/min
• Airflow (High): 5.3 m³/min

Heating Performance

• Total Heating Capacity (Low): 0.7 kW
• Total Heating Capacity (Medium): 1.0 kW
• Total Heating Capacity (High): 1.2 kW
• Inlet Air Temperature (Heating): 19 °C
• Outlet Air Temperature (Low): 33.3 °C
• Outlet Air Temperature (Medium): 31.8 °C
• Outlet Air Temperature (High): 30.6 °C
• Inlet Water Temperature: 35 °C
• Outlet Water Temperature: 30 °C

Heating Water Flow & Pressure Drop

• Water Flow (Low): 121.8 kg/h
• Water Flow (Medium): 177.5 kg/h
• Water Flow (High): 204.3 kg/h
• Pressure Drop (Low): 0.3 kPa
• Pressure Drop (Medium): 0.8 kPa
• Pressure Drop (High): 1.0 kPa

Cooling Performance

• Sensible Cooling Capacity (Low): 0.6 kW
• Sensible Cooling Capacity (Medium): 0.9 kW
• Sensible Cooling Capacity (High): 1.1 kW
• Total Cooling Capacity (Low): 0.8 kW
• Total Cooling Capacity (Medium): 1.0 kW
• Total Cooling Capacity (High): 1.2 kW
• Inlet Air Temperature (Cooling): 27 °C
• Outlet Air Temperature (Low): 14.0 °C
• Outlet Air Temperature (Medium): 16.0 °C
• Outlet Air Temperature (High): 17.0 °C
• Relative Humidity (Inlet Air): 47%

Cooling Water Flow & Pressure Drop

• Water Flow (Low): 129.0 kg/h
• Water Flow (Medium): 178.0 kg/h
• Water Flow (High): 207.0 kg/h
• Pressure Drop (Low): 1.0 kPa
• Pressure Drop (Medium): 2.0 kPa
• Pressure Drop (High): 2.0 kPa
• Inlet Water Temperature: 10 °C
• Outlet Water Temperature: 15 °C

Controls & Features

• Operating Modes: Auto, Silent, Night-time, Maximum
• Controller: Integrated touch-screen thermostat
• Valve: 3-way valve included as standard
• Cooling & Dehumidification: Supported (condensate drain required)
