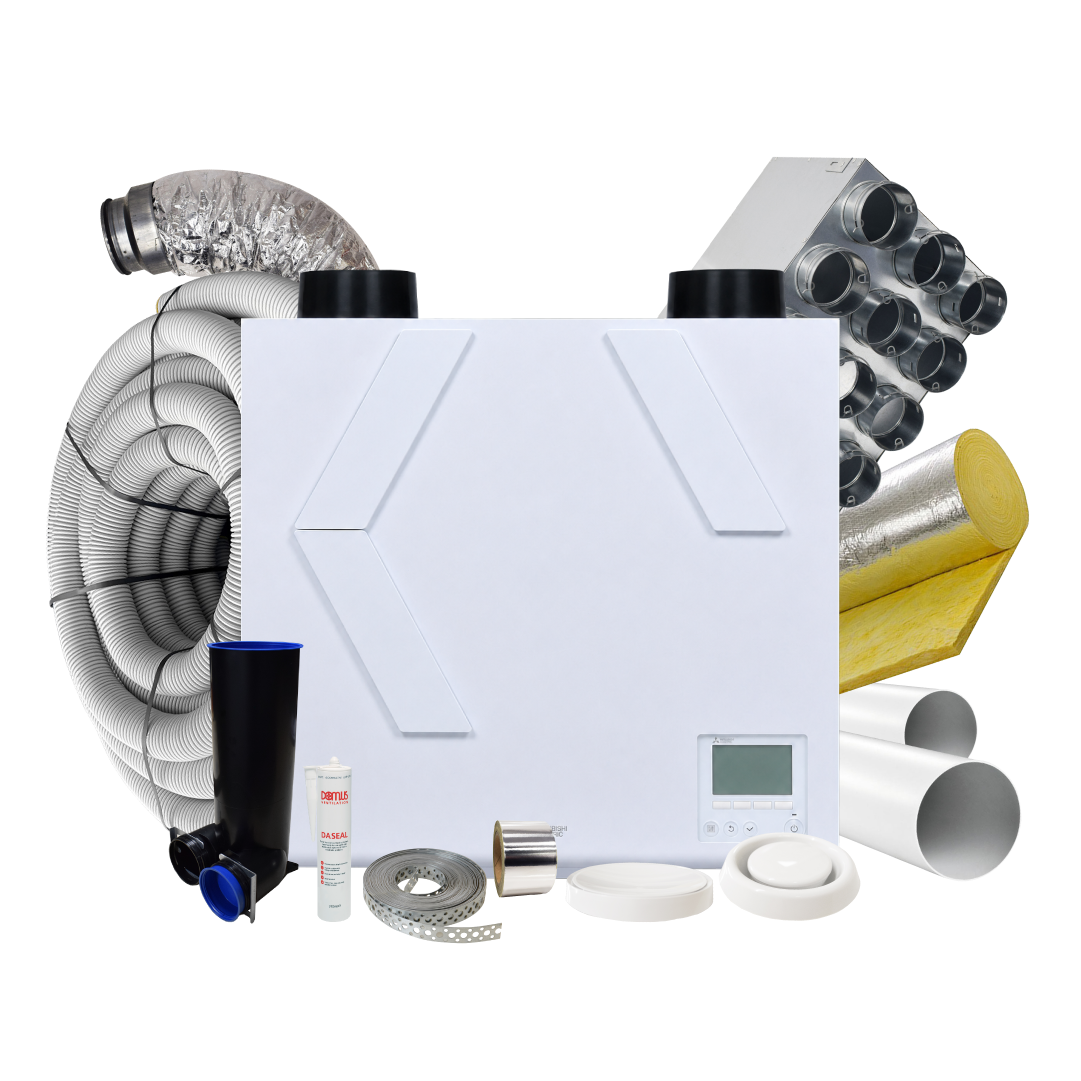

Mitsubishi 12 Room Complete MVHR Kit
Mitsubishi 12 Room Complete MVHR Kit
SKU : KIT-MITSU-MVHR-12
€4.951,52 EUR
Excl. VAT: €4.126,27 EUR
For warranty information, please refer to the manufacturer’s warranty policy or contact them directly.
Description
Mitsubishi 12 Room Complete MVHR Kit
A preset whole-house MVHR package generated from the same BPC ventilation design logic used by our design team. This configuration is based on a representative 12-room property of approximately 230 m² and uses the Mitsubishi Lossnay VL-500 (R) Residential MVHR - RIGHT (180mm 590m3/h @100Pa).
Key features
- Complete preset package for up to 12 ventilated rooms in this reference configuration
- Calculated reference airflow: 248.4 m³/h
- Selected MVHR unit: Mitsubishi Lossnay VL-500 (R) Residential MVHR - RIGHT (180mm 590m3/h @100Pa) (VL-500CZPVU-R-E)
- Manufacturer maximum airflow stored in the design catalogue: 590.0 m³/h
- 180mm main duct configuration with radial room distribution
- All component SKUs are included in the kit BOM below
Important sizing note: room count alone does not determine MVHR capacity. Property floor area, bedrooms and wet rooms change the required airflow. This product is a preset reference kit; where the property differs materially, submit plans for a BPC design check.
Bill of materials
| SKU | Item | Qty |
|---|---|---|
| QV-125AVP-S | 125mm - Quiet-Vent supply air valve PVC (white) | 7 |
| QV-125AVP-E | 125mm - Quiet-Vent extract air valve PVC (white) | 6 |
| QV-P180M-2 | QV - 180mm - Metal Pipework x 2 meter | 4 |
| QV-C180MM | QV- 180mm - Metal Male Coupling | 3 |
| QV-B90180M | QV-180mm - Metal B90º Vent Pressed Bend with seals | 10 |
| QV180F-SILENCER | Quiet-Vent 180mm x 500mm - Flexi insulated sound attenuator with adaptors | 2 |
| INS25 | QV 25mm - 1m Foil Back Glass Fibre Insulation (1.2m x 1 m) | 7 |
| QV-SSC180WM | 180mm Wall Cowl | 2 |
| CRC170-185 | 180mm Flexible Connector | 4 |
| BS50 | Builders Strap Roll (10m /12*0.8cm) | 2 |
| ST75 | 75mm - Roll Silver Foil Tape (45 meters, 30 Microns) | 2 |
| SE380 | Metal Sealant | 1 |
| QV75P-HP | QV 75mm - 50 Metre Antibacterial Radial pipe (use QV rings) | 5 |
| QV75-PLEN | Quiet-Vent 75mm Plenum | 13 |
| QV-75SR | Quiet-Vent 75mm - Standard Sealing Ring (pack of 10) | 6 |
| QV75-15180RE | Quiet-Vent 15 Pt Rear Entry Distribution box -180 spigot (75mm) with 4 x blanking caps | 2 |
| VL-500CZPVU-R-E | Mitsubishi Lossnay VL-500 (R) Residential MVHR - RIGHT (180mm 590m3/h @100Pa) | 1 |
| P-09HSD-E | Mitsubishi Duct Mount P&P Humidity Sensor for VL-250/350/500 Range | 1 |
