Ergovent Lineo Pro Condi 125 (Puzzle) 1 Slot - 1050mm -2x125mm Side Connections PVC Plenum

Product Part Number

LP125.120301

Description

The Ergovent LINEO PRO CONDI 125 1-Slot is a concealed linear diffuser designed for use with air conditioning and ventilation systems in modern residential and commercial interiors.

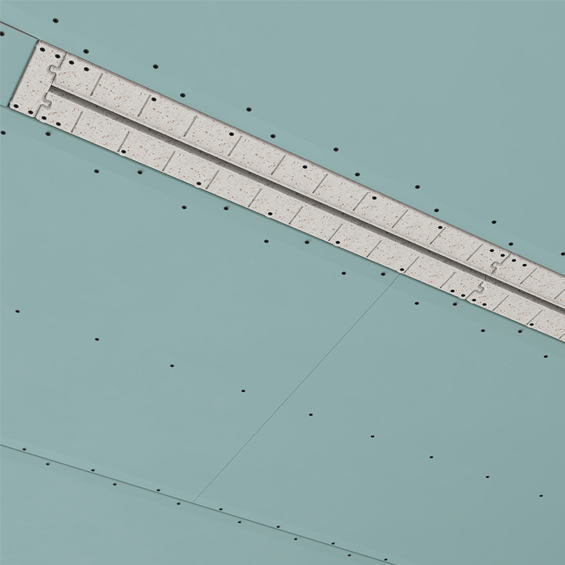

Suitable for installation in plasterboard ceilings and walls, the diffuser is fixed directly to the gypsum profiles before being filled and painted with the surrounding surface. Once installed, only a single clean linear slot remains visible, providing a discreet architectural finish without traditional surface-mounted grilles or valves.

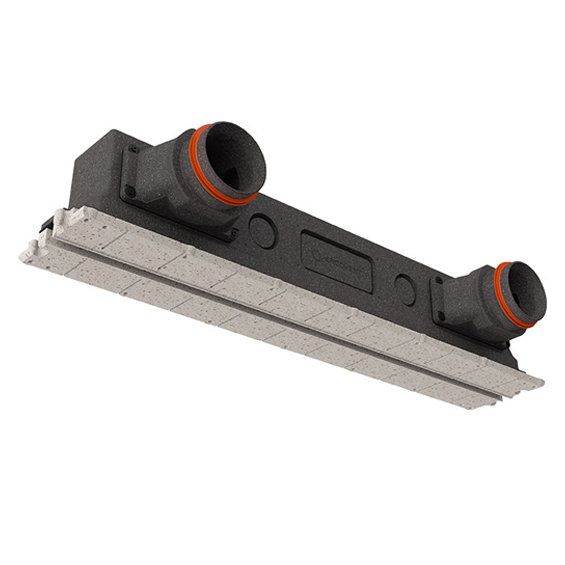

The thermally insulated EPP connection box and specially insulated metal components help minimise the risk of condensation forming within the diffuser assembly. This makes the LINEO PRO CONDI particularly suitable for conditioned air systems where cooler supply air may be present.

A built-in balancing valve allows airflow to be conveniently regulated, while six possible 125mm duct connection positions provide greater flexibility during installation. Multiple diffusers can also be connected using the Ergovent puzzle-lock system to create one continuous linear feature across a ceiling or wall.

Key Features

• Concealed single-slot linear diffuser
• Designed for 125mm duct connections
• Thermally insulated EPP connection box
• Additional insulation applied to all internal metal components
• Pressurised casing fully encloses the metal diffuser body
• Helps minimise the risk of condensation
• Integrated airflow balancing valve

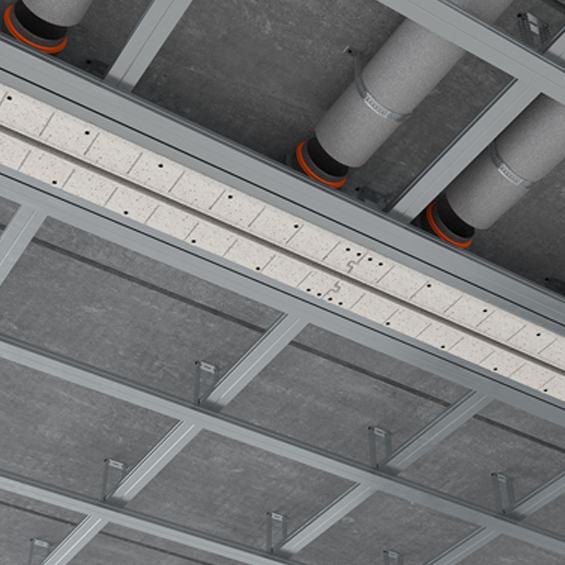

• Six flexible duct connection positions
• Three top connection positions
• Three side connection positions
• Suitable for plasterboard ceilings and walls

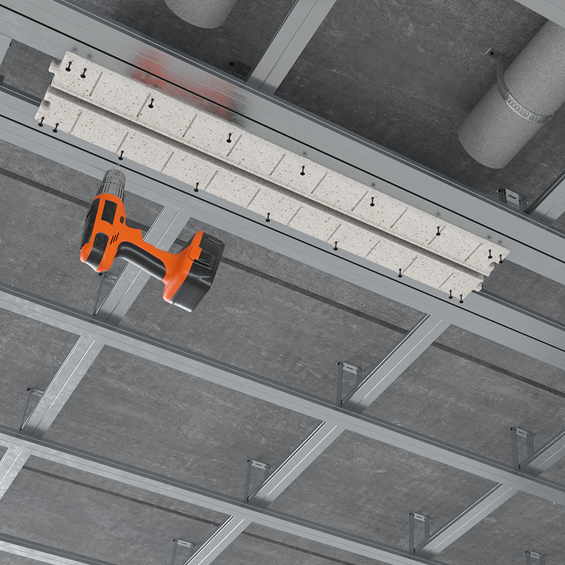

• Fixed directly to gypsum board profiles
• Can be filled and painted with the surrounding surface

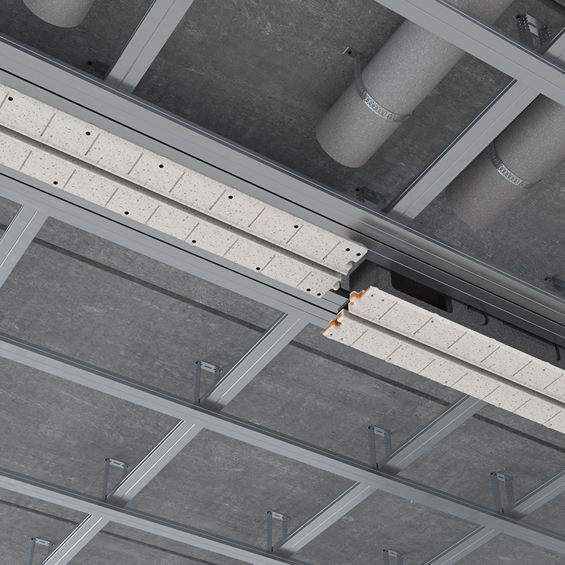

• Puzzle-lock system allows multiple diffusers to be joined
• Lightweight construction for easier handling and installation
• Laboratory tested and securely packaged

Key Benefits

• Creates a clean, minimalist architectural finish

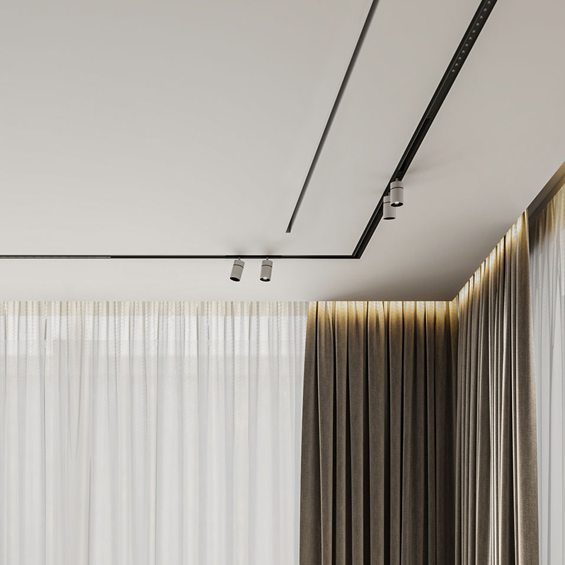

• Leaves only one narrow linear slot visible after installation
• Integrates flush with the surrounding ceiling or wall
• Provides flexible duct positioning during installation
• Helps reduce the risk of condensation within the diffuser
• Allows accurate airflow adjustment and balancing
• Supports continuous diffuser lines across larger interiors
• Helps reduce the risk of visible cracking around the installation
• Can be painted to match the surrounding interior finish

Technical Specification

Applications

The Ergovent LINEO PRO CONDI 125 1-Slot diffuser is suitable for contemporary homes, apartments, offices, hotels and other interiors where a discreet air distribution solution is required. It is particularly suited to air conditioning installations where thermal insulation is needed to help manage the risk of condensation.
