Lineo 600 Top ( 2x75mm Vertical connection)

Lineo 600 Top ( 2x75mm Vertical connection)

SKU : LINEO-600 - PROFILE VERTICAL-600

Overview

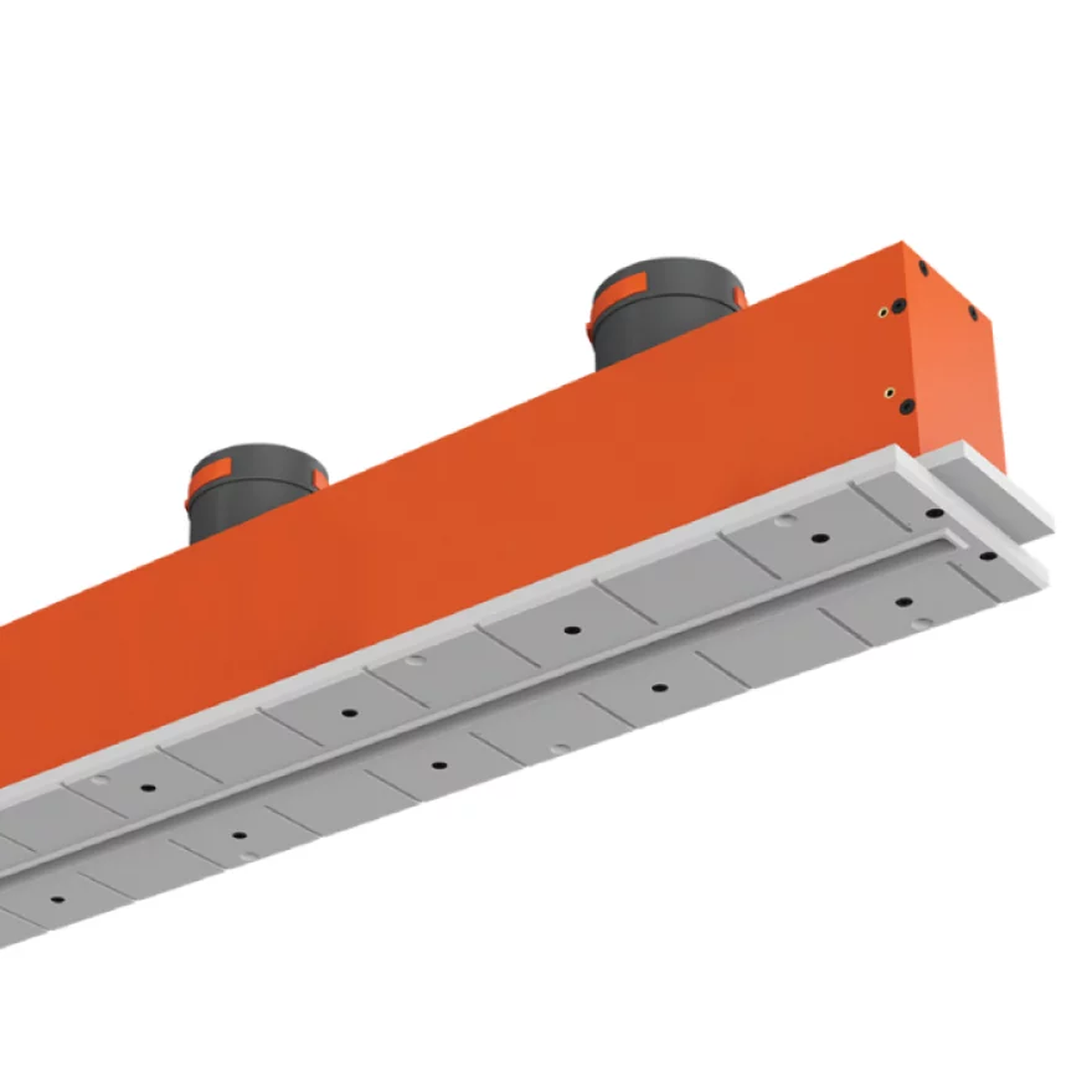

The 600 Top Model diffuser is specifically designed for installation on the exposed face of plasterboard ceilings. It connects to a flexible 75 mm plastic duct system and requires just 17 cm of installation space.
€199,82 EUR Excl. VAT: €166,52 EUR

Low stock
  • For warranty information, please refer to the manufacturer’s warranty policy or contact them directly.

Download Files

View full details

Description

Product Part Number

LINEO-PRO-600V

Product Overview

The 600 Top Model diffuser is specifically designed for installation on the exposed face of plasterboard ceilings. It connects to a flexible 75 mm plastic duct system and requires just 17 cm of installation space.

Technical Specifications

- Slot Length: 600 mm (fixed length, not extendable)

- Installation Depth: Requires 17 cm of space

- Duct Connection Diameter: 75 mm

Materials:

- PVC connection box and diffuser base

- Powder-coated black metal grilles

- Antistatic polypropylene (PP) duct connectors

Frequently Asked Questions

  • What are internal air valves used for?

    Internal air valves are used as the room-side ventilation terminal in a property. They can supply fresh air into living spaces and bedrooms or extract stale air from wet rooms such as bathrooms, kitchens and utility rooms.

  • What is the difference between a supply valve and an extract valve?

    A supply valve delivers fresh air into a room, while an extract valve removes stale or humid air from a room. The correct type depends on the room and the ventilation system design.

  • Are discreet ceiling air valves available?

    Yes, discreet ceiling air valves are available for projects where a more minimal finish is preferred. These can be useful in modern interiors where the visible ventilation finish is important.

  • Do air valves need to be adjusted or balanced?

    Yes, air valves may need to be adjusted during system commissioning to achieve the correct airflow rates, helping the ventilation system perform as intended.
