Lineo 600 Side ( 2x75mm Side connection)

Lineo 600 Side ( 2x75mm Side connection)

SKU : LINEO-600 - 75mm/PROFILE/Damper

Overview

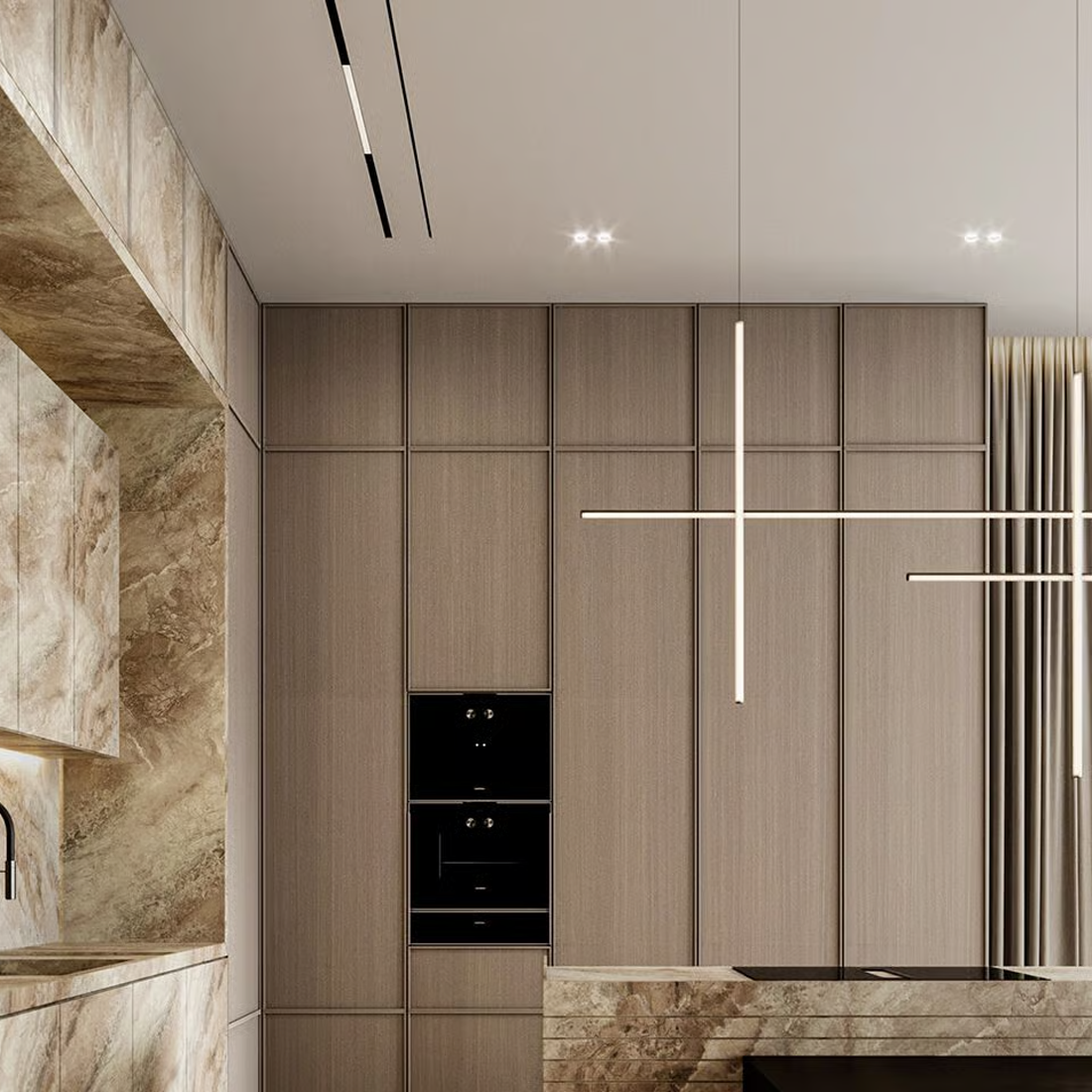

The ERGOVENT LINEO 600 is a linear ventilation diffuser crafted for seamless installation into plasterboard ceilings and walls. With a fixed 600 mm slot and a discreet, paintable finish, it creates a clean, architectural aesthetic where only a minimalist slit remains visible.
€199,82 EUR Excl. VAT: €166,52 EUR

Out of Stock
  • For warranty information, please refer to the manufacturer’s warranty policy or contact them directly.

Download Files

View full details

Description

Product Part Number

LINEO-PRO-600S

Product Overview

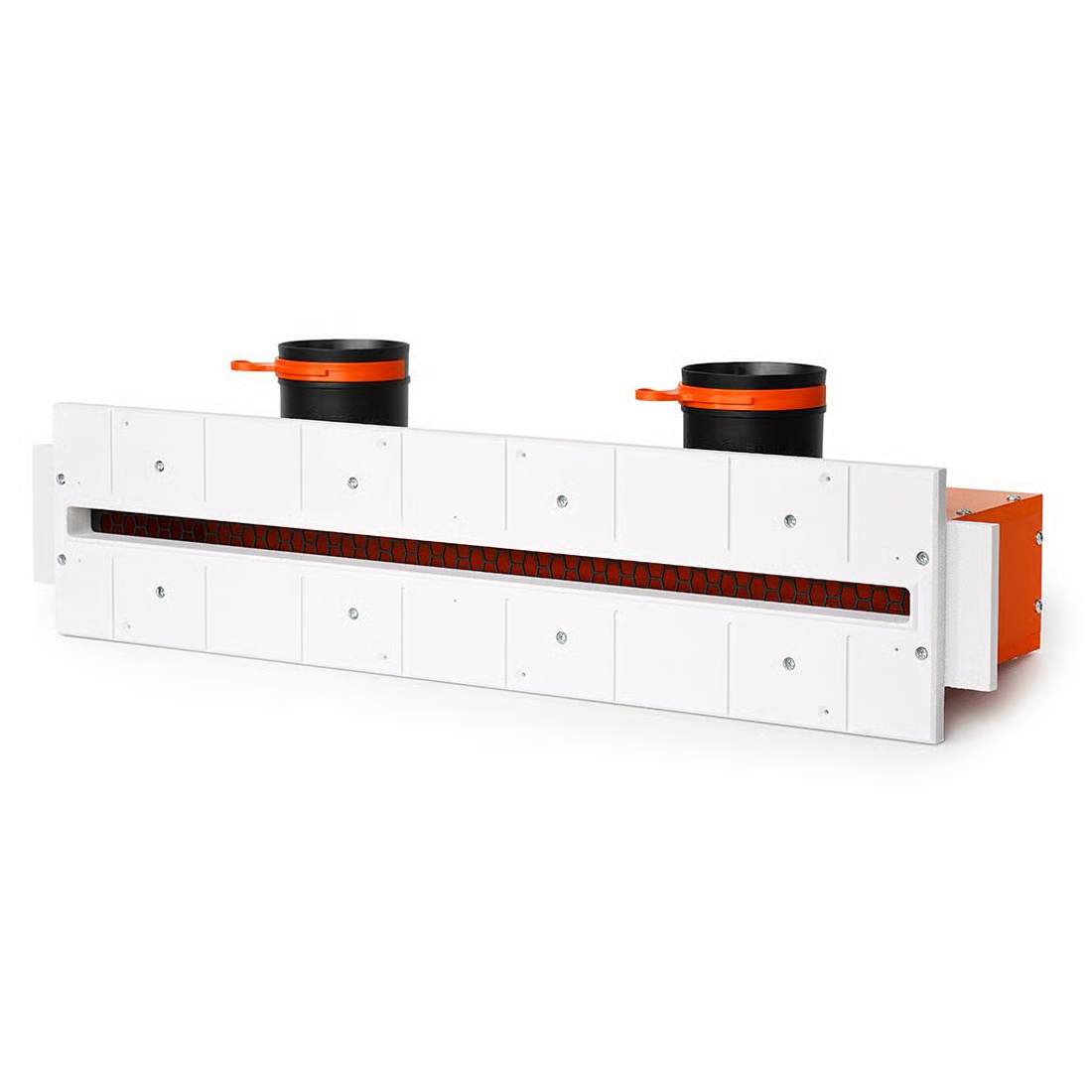

The ERGOVENT LINEO 600 is a linear ventilation diffuser crafted for seamless installation into plasterboard ceilings and walls. With a fixed 600 mm slot and a discreet, paintable finish, it creates a clean, architectural aesthetic where only a minimalist slit remains visible.

Technical Specifications

- Slot Length: 600 mm (fixed length, not extendable)

- Installation Depth: Requires 17 cm of space

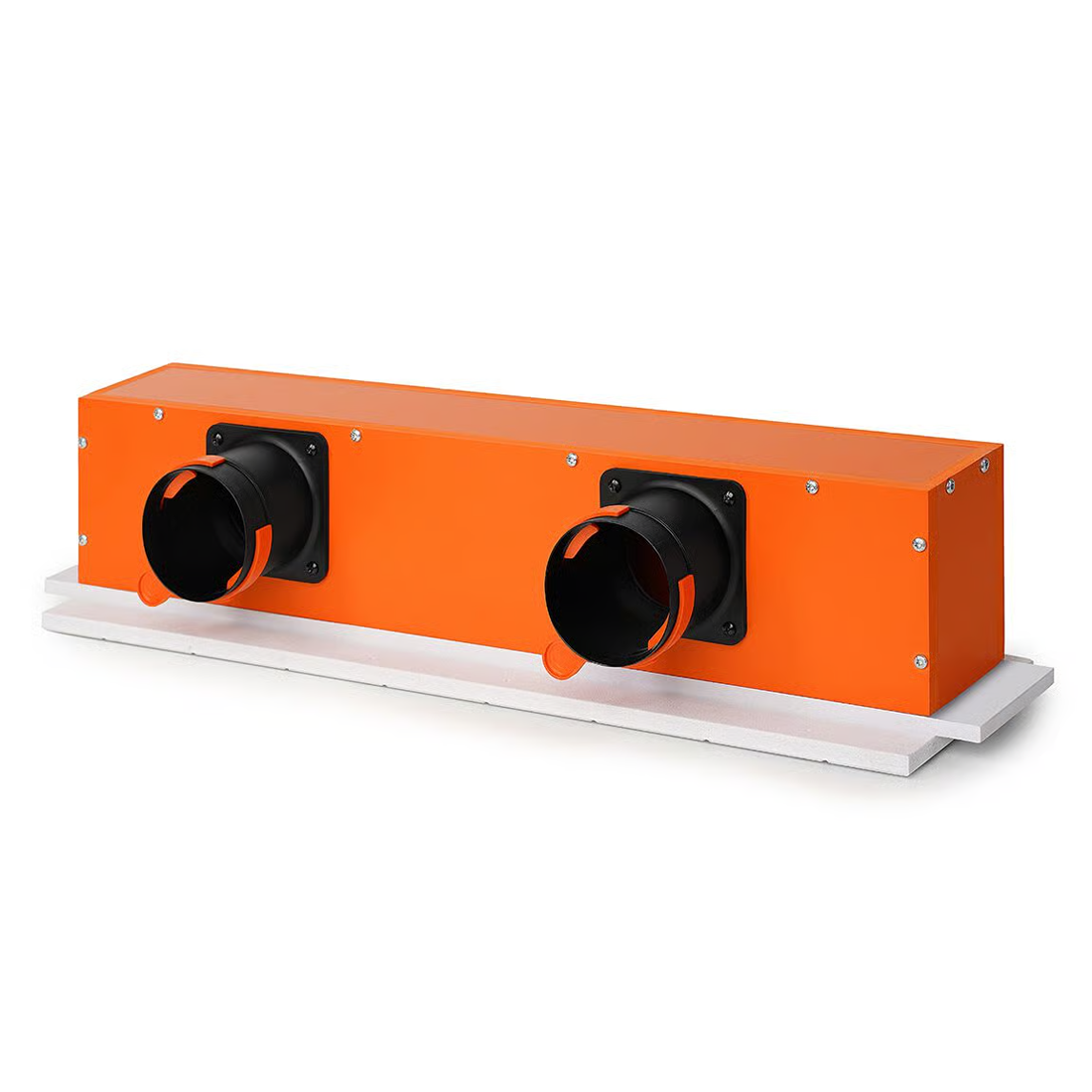

- Duct Connection Diameter: 75 mm (2 duct fittings included)

Materials:

- PVC connection box and diffuser base

- Powder-coated black metal grilles

- Antistatic polypropylene (PP) duct connectors

Installation:

- Installation Method: Direct mounting to ceiling or wall profiles

- Airflow Control: Built-in adjustable balancing damper, accessible via included gauge

Frequently Asked Questions

  • What are internal air valves used for?

    Internal air valves are used as the room-side ventilation terminal in a property. They can supply fresh air into living spaces and bedrooms or extract stale air from wet rooms such as bathrooms, kitchens and utility rooms.

  • What is the difference between a supply valve and an extract valve?

    A supply valve delivers fresh air into a room, while an extract valve removes stale or humid air from a room. The correct type depends on the room and the ventilation system design.

  • Are discreet ceiling air valves available?

    Yes, discreet ceiling air valves are available for projects where a more minimal finish is preferred. These can be useful in modern interiors where the visible ventilation finish is important.

  • Do air valves need to be adjusted or balanced?

    Yes, air valves may need to be adjusted during system commissioning to achieve the correct airflow rates, helping the ventilation system perform as intended.
