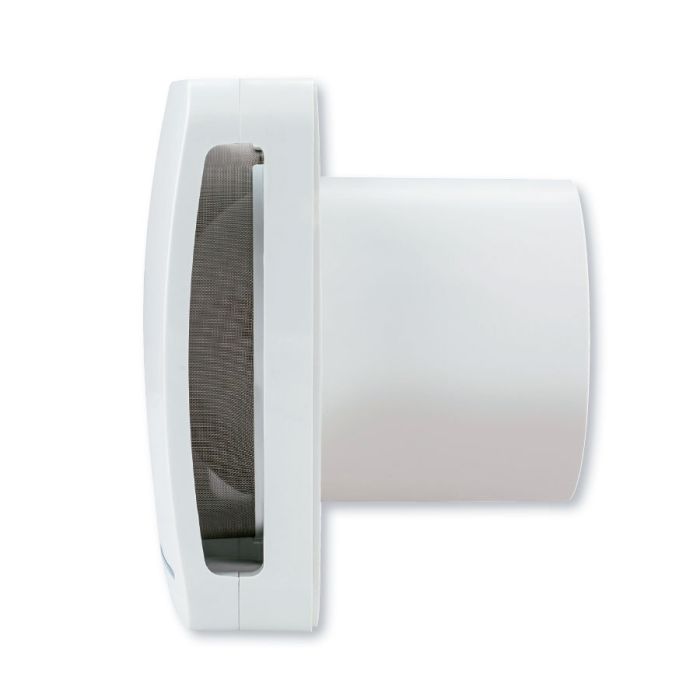

Eco Air SLC Bathroom Fan

Eco Air SLC Bathroom Fan

SKU : Eco Air SLC

Overview

The S&P ECOAIR SLC is an energy-efficient 100mm centrifugal extract fan designed to provide continuous decentralised mechanical extract ventilation in bathrooms, toilets, utility rooms and other small domestic spaces.
€136,76 EUR Excl. VAT: €113,97 EUR

Low stock
  • For warranty information, please refer to the manufacturer’s warranty policy or contact them directly.
View full details

Description

Product Part Number

Eco Air SLC

Product Overview

The S&P ECOAIR SLC is an energy-efficient 100mm centrifugal extract fan designed to provide continuous decentralised mechanical extract ventilation in bathrooms, toilets, utility rooms and other small domestic spaces.

During continuous operation, the fan runs at an adjustable low trickle speed to provide a consistent level of background ventilation. A separate external switch or light switch can be used to activate the fixed high-speed boost setting when additional extraction is required.

The unit can also be configured for intermittent operation, where it runs at a speed selected during installation whenever the connected switch is activated. This provides flexibility for both continuous dMEV and conventional demand-controlled applications.

Its forward-curved centrifugal impeller is powered by a low-energy DC motor mounted on vibration-absorbing silent elastic blocks. This helps the fan maintain quiet operation while providing improved performance against the resistance created by ductwork.

The ECOAIR SLC includes a removable and washable inlet filter, which helps protect the internal fan components from dirt. A back-draught shutter is supplied for use when the fan is configured for intermittent operation. The fan is suitable for wall or ceiling mounting and connects to standard 100mm ducting.

Technical Specification

Manufacturer: Soler & Palau

Product Range: ECOAIR LC ECOWATT

Fan Type: Low-energy centrifugal extract fan

Ventilation Type: Continuous decentralised mechanical extract ventilation

Application: Bathrooms, toilets, utility rooms and other small domestic spaces

Installation: Suitable for wall or ceiling mounting

Operating Modes: Continuous operation or intermittent operation

Continuous Operation: Adjustable low-speed trickle ventilation with externally activated fixed-speed boost

Intermittent Operation: Fan operates at the speed selected during installation when the external switch is activated

Maximum Airflow: 60m³/h

Maximum Airflow: Approximately 16.7l/s

Listed Rated Airflow: 17l/s

Minimum Airflow: 15m³/h

Minimum Airflow: Approximately 4.2l/s

Airflow Adjustment: Low-speed or intermittent airflow adjustable during installation

Maximum Absorbed Power: 5.6W

Minimum Absorbed Power: 0.8W

Supply Voltage: 90–260V AC

Frequency: 50/60Hz

Maximum Sound Pressure Level: 32dB(A) at 4 metres

Minimum Sound Pressure Level: Less than 20dB(A) at 4 metres

Impeller Type: Forward-curved centrifugal impeller

Motor Type: Energy-efficient DC motor

Motor Mounting: Vibration-absorbing silent elastic blocks

Duct Connection: 100mm diameter

Back-Draught Shutter: Supplied

Back-Draught Shutter Installation: Intended for use when configured for intermittent operation

Inlet Filter: Removable and washable plastic mesh filter

Timer: No

Humidity Sensor: No

PIR Movement Sensor: No

Electrical Insulation: Class II

IP Rating: IPX4

Colour: White

Front Dimensions: 158mm × 158mm

Front Cover Depth: 48mm

Overall Depth: 127mm

Spigot Diameter: 99mm

Weight: Approximately 0.57kg

Frequently Asked Questions

  • What is an extractor fan used for?

    An extractor fan removes humid, stale or polluted air from a room. They are commonly used in bathrooms, kitchens, utility rooms and other areas where moisture, odours or poor airflow can build up.

  • What extractor fan do I need for a bathroom?

    The right bathroom extractor fan depends on the room size, installation location, duct route and control type required. Timer, humidity and low-carbon options are available depending on the project.

  • Can extractor fans help with condensation?

    Yes, extractor fans can help reduce condensation by removing humid air from wet rooms. However, condensation can also be affected by insulation, heating, airflow and overall ventilation.

  • What is a D-MEV fan?

    A D-MEV fan is a decentralised mechanical extract ventilation fan. It usually runs continuously at a low rate, with boost options when more extraction is needed.

  • What is the difference between an extractor fan and an inline fan?

    A standard extractor fan is usually mounted on a wall, window or ceiling. An inline fan is installed within the duct run, often in a loft or ceiling void, and can be useful where a longer duct route is needed.
