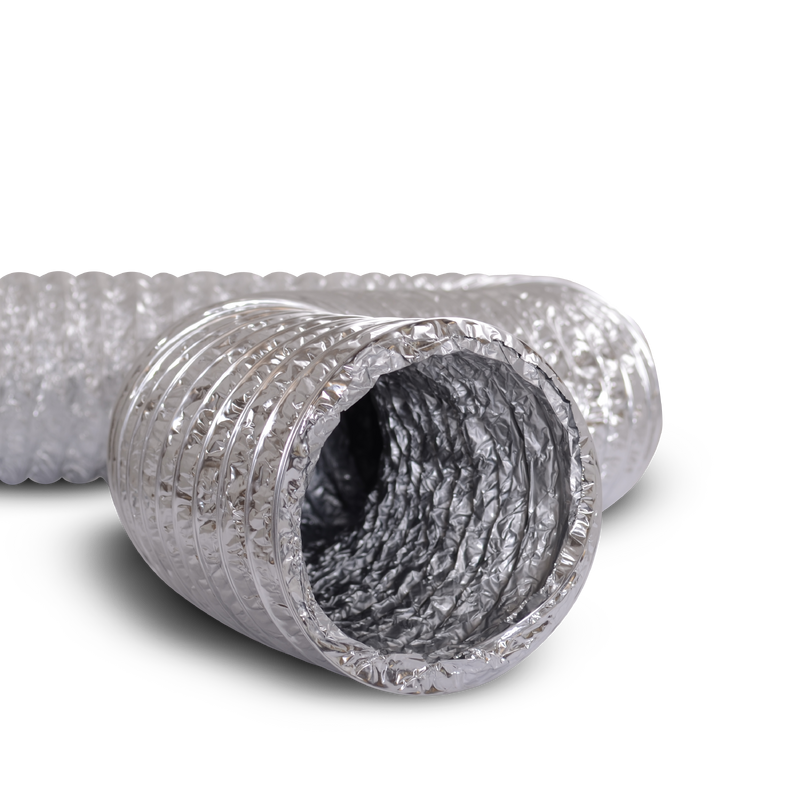

• Roll of flexible duct on a white background
1 1

Aluminium Flexible Duct (10mtr box)

Aluminium Flexible Duct (10mtr box)

SKU : GFD100-10

Overview

The AirWise AWFDAL is a high-performance flexible ducting solution, constructed from reinforced aluminium and polyester laminate, with an encapsulated high-tensile steel wire helix for added strength and flexibility.
€8,24 EUR Excl. VAT: €6,87 EUR

In Stock
  • For warranty information, please refer to the manufacturer’s warranty policy or contact them directly.
View full details

Description

Product Part Number

102mm Aluminium Flexible Duct (10meter Box) - GFD100-10
127mm Aluminium Flexible Duct (10meter Box) - GFD125-10
152mm Aluminium Flexible Duct (10meter Box) - GFD150-10

Description

This aluminium flexible duct is a high-performance flexible ducting solution, constructed from reinforced aluminium and polyester laminate, with an encapsulated high-tensile steel wire helix for added strength and flexibility.

Key Advantages:

  • Supplied in standard 10-meter lengths, compressed to 0.6 meters for easy handling and storage
  • Can be cut to custom lengths as needed
  • Simple connection to both round and oval ducting systems
  • No special tools required for cutting or installation
  • Non-toxic—does not emit harmful gases in the event of fire
  • Successfully tested and rated for fire resistance

Technical Specifications:

  • Material: Reinforced aluminium/polyester laminate
  • Corrosion Resistance: Non-corrosive to steel, copper, aluminium, and zinc
  • Wire Pitch: 24mm
  • Diameter Range: 80mm to 610mm
  • Temperature Range: -30°C to +130°C
  • Maximum Air Velocity: 30 m/sec
  • Maximum Positive Pressure: 2300 Pa
  • Standard Length: 10 meters
  • Clamping Options: Lightning band or stainless steel flex clips
  • Ideal for HVAC systems requiring a durable, flexible, and fire-resistant ducting solution.

Frequently Asked Questions

  • What is flexible ducting used for?

    Flexible ducting is used to move air through a ventilation system where an adaptable duct connection is required. It can be used with extractor fans, grilles, terminals and other ventilation components depending on the installation.

  • What is insulated flexible ducting?

    Insulated flexible ducting includes an insulation layer around the duct, helping reduce heat loss and condensation risk in certain ventilation routes.

  • Can flexible ducting be used for kitchen extraction?

    Flexible ducting can be used in some kitchen extraction installations, but the duct material, diameter and appliance manufacturer's requirements should always be checked.

  • Is flexible ducting as efficient as rigid ducting?

    Flexible ducting generally creates more airflow resistance than smooth rigid ducting, particularly if it is compressed, kinked or installed with unnecessary bends.

  • What length of flexible duct run is recommended?

    Flexible duct runs should generally be kept as short and straight as practical. Long runs and tight bends increase resistance and can reduce airflow.
