125mm PVC exterior grille

SKU : GPVC125B

Overview

The GPVC125W 125mm Exterior Louvred Grille provides a neat and durable termination point for 125mm round ventilation ducting. Designed for external ventilation applications, the grille features fixed louvres to provide a protective cover over the duct opening while allowing airflow through the ventilation system. The round rear spigot provides compatibility with 125mm ducting for straightforward connection and installation.

€5,09 EUR Excl. VAT: €4,24 EUR

For warranty information, please refer to the manufacturer’s warranty policy or contact them directly.

Any questions? Reach out to our team

View full details

Description

Product Part Number

GPVC125W - White 125mm PVC exterior grille

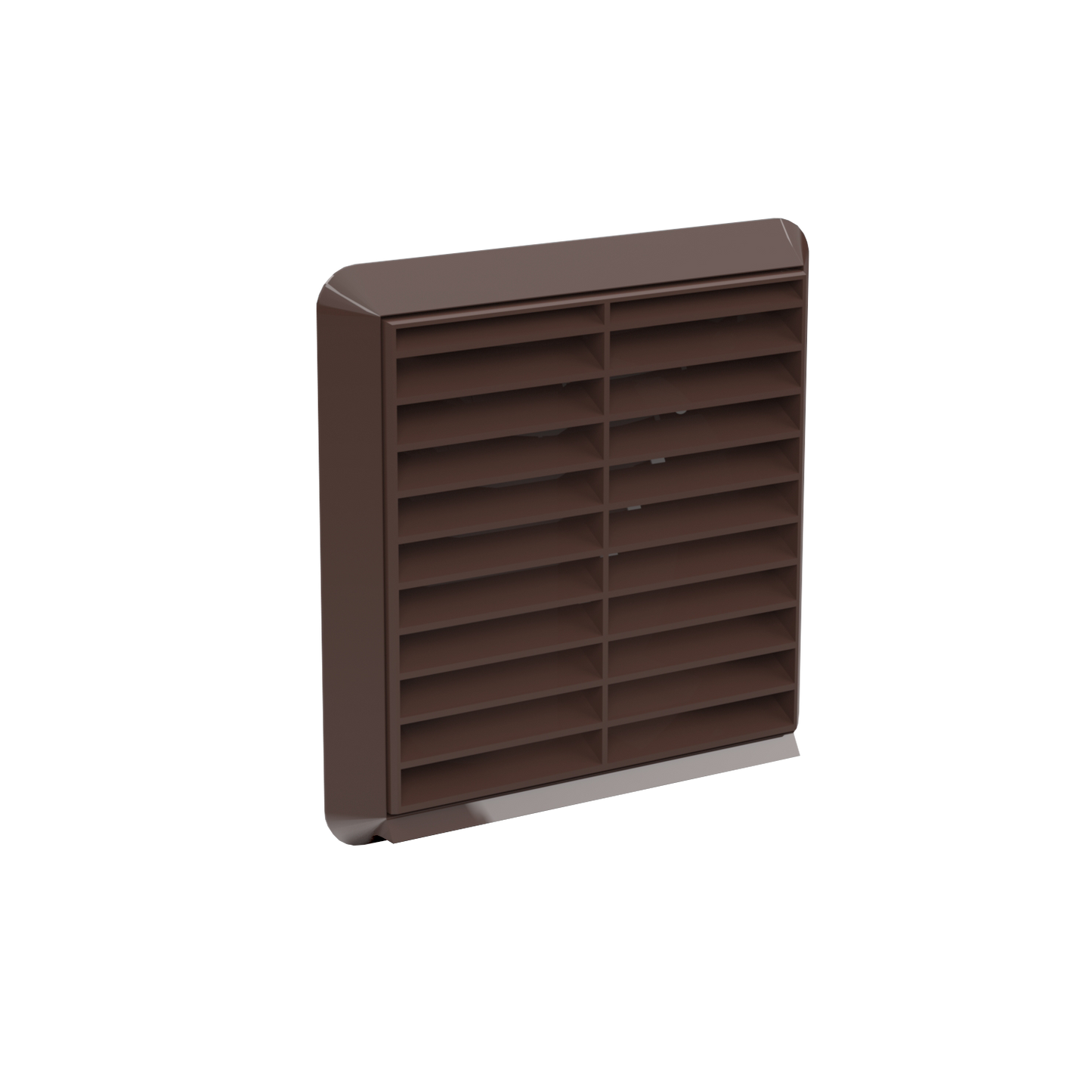

GPVC125Brown - Brown 125mm PVC exterior grille

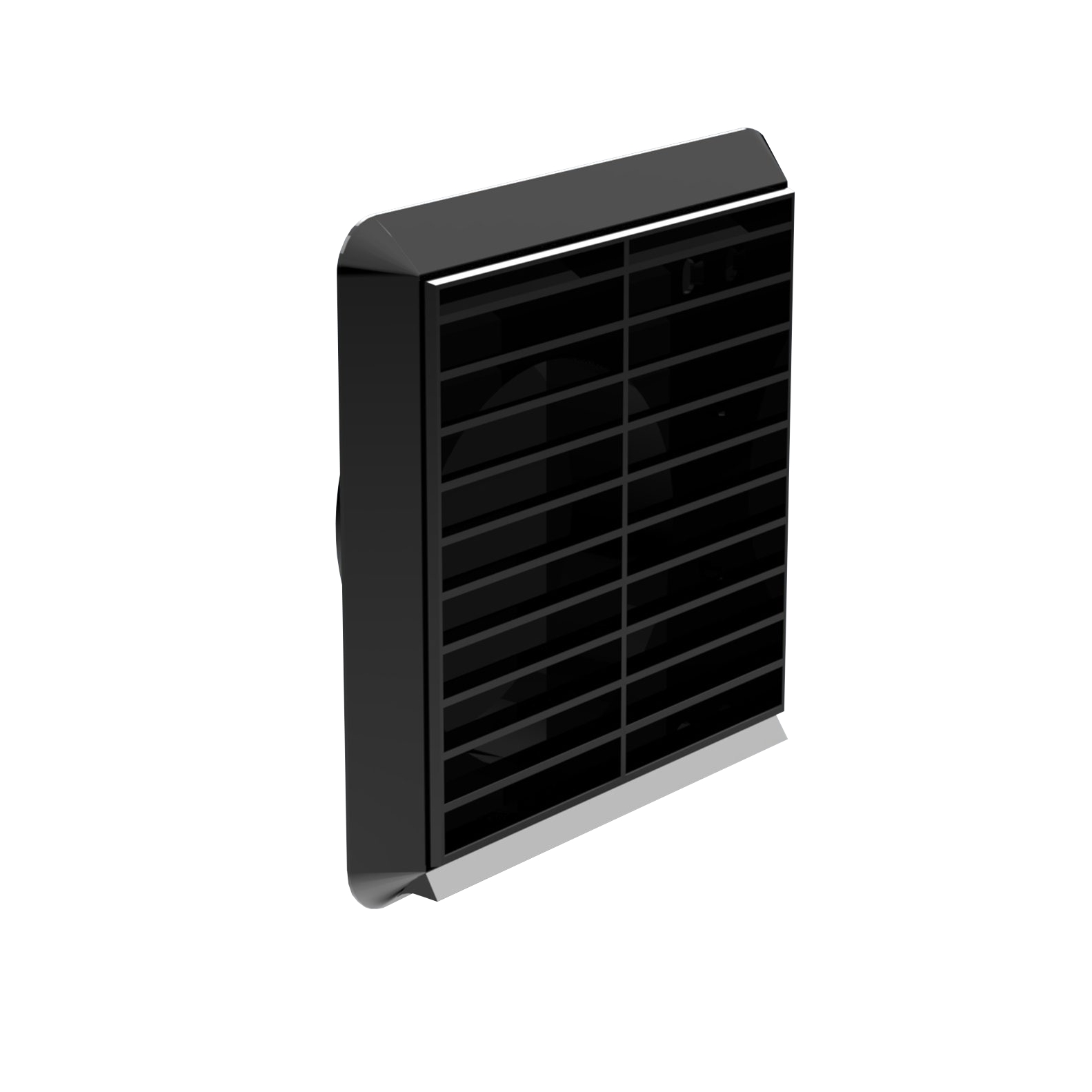

GPVC125B - Black 125mm PVC exterior grille

Product Overview

The GPVC125W 125mm Exterior Louvred Grille provides a neat and durable termination point for 125mm round ventilation ducting.

Designed for external ventilation applications, the grille features fixed louvres to provide a protective cover over the duct opening while allowing airflow through the ventilation system. The round rear spigot provides compatibility with 125mm ducting for straightforward connection and installation.

Manufactured from lightweight polypropylene and finished in white, the grille provides a clean, unobtrusive appearance suitable for a wide range of residential and light commercial ventilation installations.

Technical Specification

Specification	Details
Product Type	Exterior Louvred Grille
System Size	125mm
Spigot Type	Round
Duct Connection	125mm
Material	Polypropylene
Available Colours	White, Brown, Black
White Colour Code	RAL 9003
Brown Colour Code	RAL 8017
Black Colour Code	N/A
Weight	0.097 kg
Application	External ventilation termination
Louvre Type	Fixed louvres
Flyscreen	No

Frequently Asked Questions

What are external air valves used for?

External air valves, grilles and terminals are used as the outside connection point for ventilation ductwork, they allow air to enter or leave the property while helping protect the duct opening.
What is the difference between an internal and external air valve?

Internal air valves are fitted inside the property, usually on ceilings or walls. External air valves or terminals are fitted outside the property, such as on an external wall, roof or soffit.
Do external air valves need insect mesh?

Some external grilles and cowls include insect mesh to help reduce the risk of insects entering the duct.
