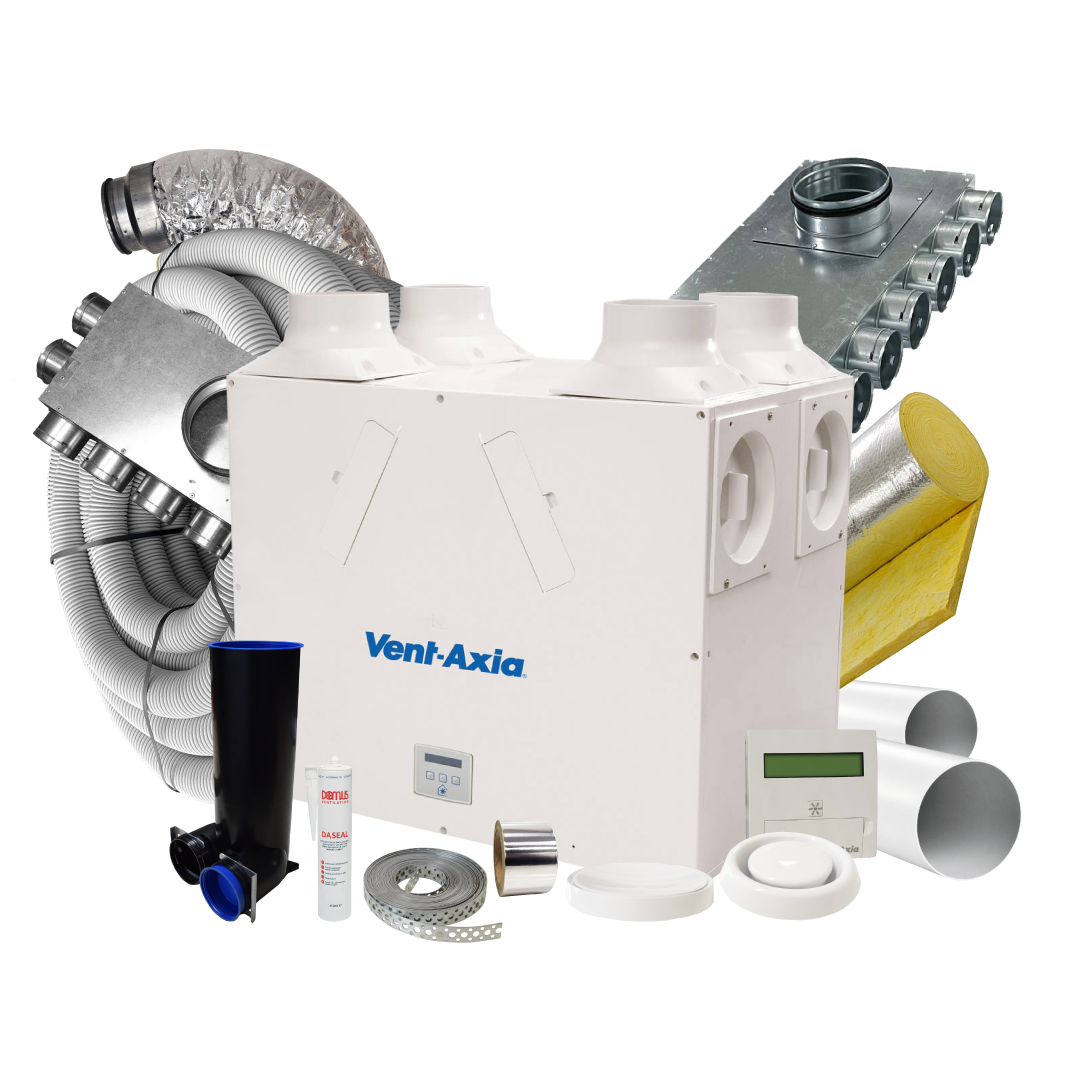

Vent-Axia 12 Room Complete MVHR Kit
Vent-Axia 12 Room Complete MVHR Kit
SKU : KIT-VA-MVHR-12
€4.334,04 EUR
Excl. VAT: €3.611,70 EUR
Couldn't load pickup availability
For warranty information, please refer to the manufacturer’s warranty policy or contact them directly.
Description
Vent-Axia 12 Room Complete MVHR Kit
A preset whole-house MVHR package generated from the same BPC ventilation design logic used by our design team. This configuration is based on a representative 12-room property of approximately 230 m² and uses the Vent Axia Kinetic Plus B R/H (150mm 425m3/h @ 100Pa).
Key features
- Complete preset package for up to 12 ventilated rooms in this reference configuration
- Calculated reference airflow: 248.4 m³/h
- Selected MVHR unit: Vent Axia Kinetic Plus B R/H (150mm 425m3/h @ 100Pa) (443028)
- Manufacturer maximum airflow stored in the design catalogue: 425.0 m³/h
- 150mm main duct configuration with radial room distribution
- All component SKUs are included in the kit BOM below
Important sizing note: room count alone does not determine MVHR capacity. Property floor area, bedrooms and wet rooms change the required airflow. This product is a preset reference kit; where the property differs materially, submit plans for a BPC design check.
Bill of materials
| SKU | Item | Qty |
|---|---|---|
| QV-125AVP-S | 125mm - Quiet-Vent supply air valve PVC (white) | 7 |
| QV-125AVP-E | 125mm - Quiet-Vent extract air valve PVC (white) | 6 |
| P150-2 | 150mm - PVC Pipework x 2 metre | 4 |
| C150 | 150mm - PVC Pipe connector | 3 |
| B90150 | 150mm - PVC 90º bends | 10 |
| QV150F-SILENCER | Quiet-Vent 150mm x 500mm - Flexi insulated sound attenuator with adaptors | 2 |
| INS25 | QV 25mm - 1m Foil Back Glass Fibre Insulation (1.2m x 1 m) | 4 |
| QV-SSC150M | 150mm Wall Cowl | 2 |
| QVRC150 | Quiet-Vent 150mm Rubber flexible circular duct connector & 2 x clips | 4 |
| BS50 | Builders Strap Roll (10m /12*0.8cm) | 2 |
| ST75 | 75mm - Roll Silver Foil Tape (45 meters, 30 Microns) | 2 |
| DASEAL | Sealant - PVC Duct 310ml White | 1 |
| QV75P-HP | QV 75mm - 50 Metre Antibacterial Radial pipe (use QV rings) | 5 |
| QV75-PLEN | Quiet-Vent 75mm Plenum | 13 |
| QV-75SR | Quiet-Vent 75mm - Standard Sealing Ring (pack of 10) | 5 |
| QV75-10150TE | Quiet-Vent 10 Pt Top Entry Distribution box -150 spigot (75mm) with 3 x blanking caps | 1 |
| QV75-12150MTE | Quiet-Vent 12 pt Adjustable top entry Dist Box - 150 Spigot (75mm) with 3 x blanking caps | 1 |
| 443028 | Vent Axia Kinetic Plus B R/H (150mm 425m3/h @ 100Pa) | 1 |
| 443283C | Vent Axia Digital controller - hard wired (Sentinel Kinetic Only) | 1 |
