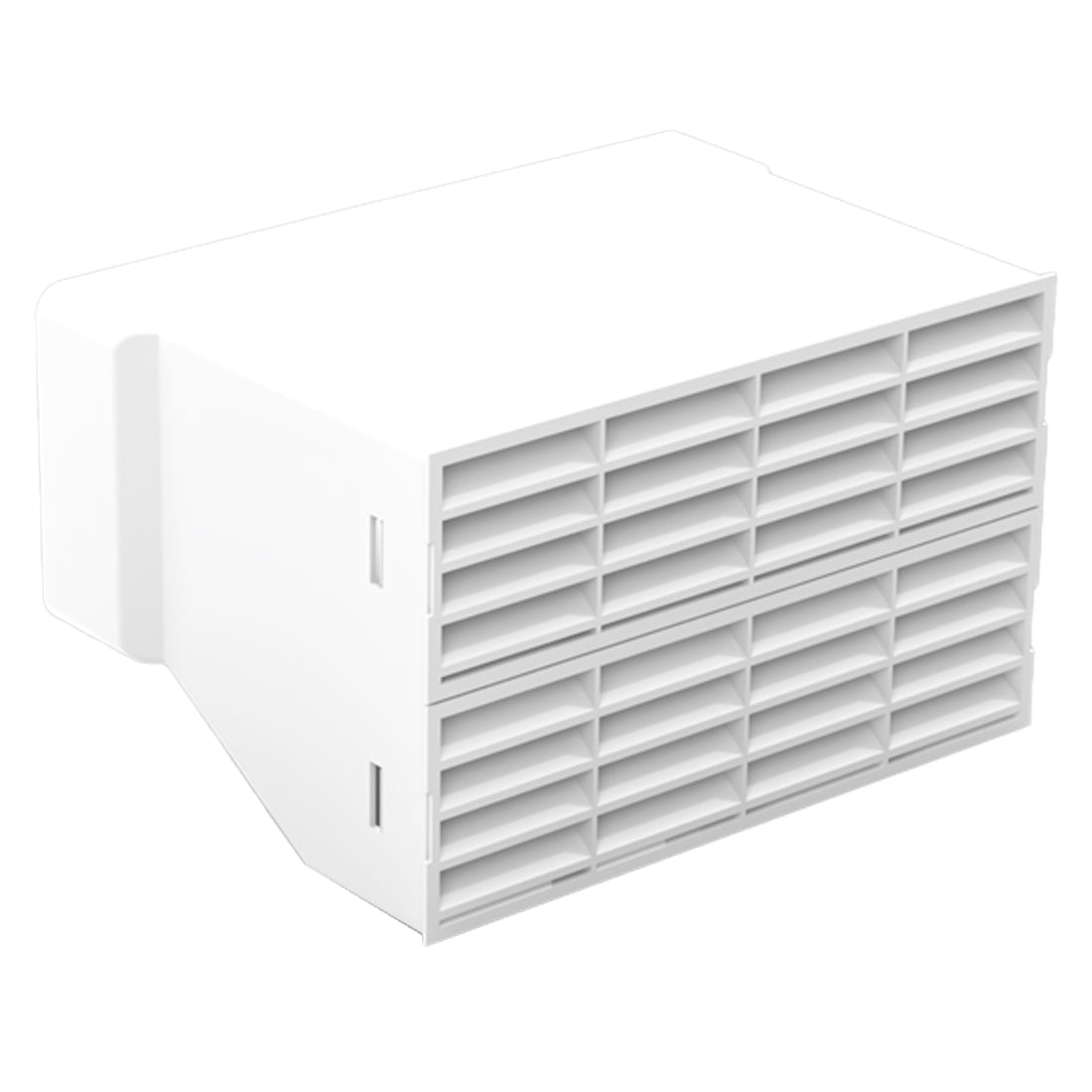

220x90mm - Double airbrick Complete (white) - VP

220x90mm - Double airbrick Complete (white) - VP

SKU : VKC5733G-W

Overview

The 220 x 90 mm Rectangular Double Airbrick Adaptor with Grilles is manufactured from durable white High Impact Polystyrene and offers a minimum free area of 15,360 mm². It features a female adaptor for easy external connection to the System 220 ducting.
€18,78 EUR Excl. VAT: €15,65 EUR

In Stock
  • For warranty information, please refer to the manufacturer’s warranty policy or contact them directly.

Download Files

View full details

Description

Product Part Number

VKC5733G-W

Description

The 220 x 90 mm Rectangular Double Airbrick Adaptor with Grilles is manufactured from durable white High Impact Polystyrene and offers a minimum free area of 15,360 mm². It features a female adaptor for easy external connection to the System 220 ducting.

Fully compliant with the SAP Appendix Q Product Characteristics Database, this adaptor meets recommendations for duct sizing used in both extract and Mechanical Heat Recovery Ventilation (MVHR) systems. The VKC5733G-W is also produced in accordance with the Domestic Plastic Ductwork Specification DW/154 and meets the UL94HB flammability standard, ensuring both safety and performance.

Specifically designed for compatibility with the Verplas System 220, this adaptor delivers efficient airflow and reliable system integration.

Technical Specification

Dimensions: 220 mm x 90 mm

Material: High Impact Polystyrene

Individual weight: 0.332kg

Frequently Asked Questions

  • What are external air valves used for?

    External air valves, grilles and terminals are used as the outside connection point for ventilation ductwork, they allow air to enter or leave the property while helping protect the duct opening.

  • What is the difference between an internal and external air valve?

    Internal air valves are fitted inside the property, usually on ceilings or walls. External air valves or terminals are fitted outside the property, such as on an external wall, roof or soffit.

  • Do external air valves need insect mesh?

    Some external grilles and cowls include insect mesh to help reduce the risk of insects entering the duct.

  • What size external vent do I need to match my ducting?

    The external vent should be compatible with the duct diameter and capable of handling the required airflow without excessive resistance.

  • Do external vents need regular cleaning or maintenance?

    Yes. External vents should be checked periodically for leaves, dirt, insects or other obstructions that could restrict airflow.
