Domus CMX-S MEV Unit

Domus CMX-S MEV Unit

Part Number: CMX-S

Ultra-Compact & Versatile – At just 125mm in depth, the CMX-S is one of the most space-saving MEV solutions available, making it ideal for ceiling voids, utility cupboards, or tight spaces.
Flexible Installation – Designed for horizontal or vertical installation to suit various property layouts.
Duct Compatibility – Features 220x90mm duct connectors, adaptable to 150mm round ducts using additional adaptors.
Energy Efficient – High-efficiency EC backward curved centrifugal impeller fan/motor, delivering powerful performance with minimal energy consumption.
Meets Building Regulations – Classified as System 3 in Approved Document F, ensuring continuous air extraction for a healthier home environment.

Technical Features:

• Max Airflow – 430m³/h
• Specific Fan Power (SFP) – As low as 0.24 w/l/s

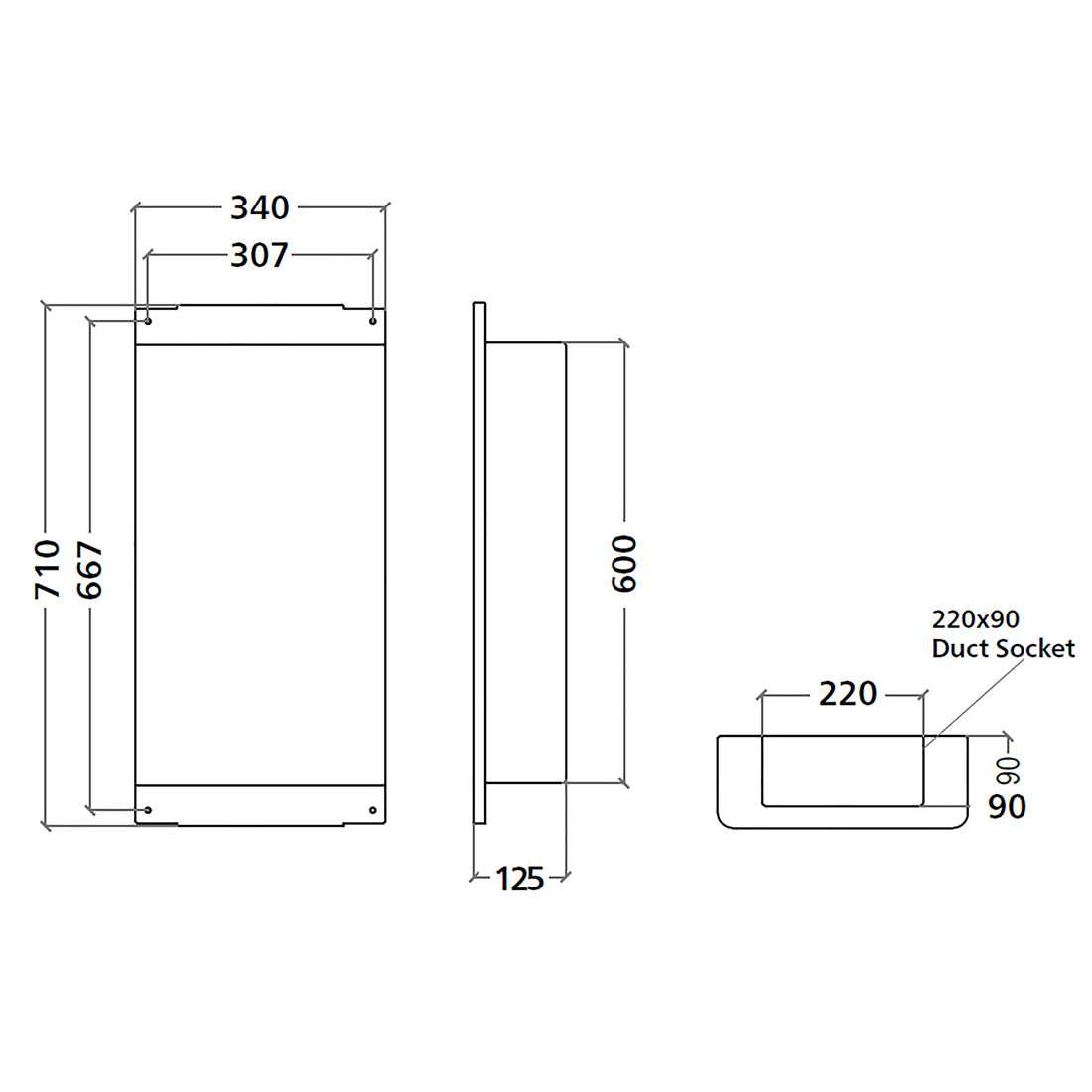

• Dimensions (mm) – 710 (L) x 340 (W) x 125 (H)
• Floor Area Coverage – Up to 275m²
• Temperature Range – +50°C to -25°C
• Noise Reduction – PVC outer casing with built-in acoustic lining for quieter operation.

Controllability:

• Three Fully Variable Speeds – Trickle, Boost, and Purge for ultimate airflow control.
• Switch Live (LS) Boost Activation – Instantly increases airflow when needed.
• Manual Speed Selection – Potentiometer-controlled speed selector for precise adjustments.

Accessories:

• ANC848A – LOW/BOOST Switch – Enables manual boost selection for increased airflow when required.
• ANC849A – OCCUPIED/UNOCCUPIED LOW/BOOST Switch – Allows for energy-saving ultra-low mode when the property is vacant.
• ANC850A – LOW/BOOST/PURGE Switch – Features an extra PURGE mode for high-speed air extraction (ideal for smoke or paint fumes).

The Domus CMX-S MEV Unit is a compact, high-performance ventilation system designed for modern homes, ensuring fresh, clean air with low energy consumption and advanced control options.
