Thermal pipe x 1m with connector (Fire Retardant)
Thermal pipe x 1m with connector (Fire Retardant)
SKU : QV-TH-125-P-1M
Overview
The Q-V Thermal Pipe is a high-quality thermal insulation solution designed for reliable performance in demanding environments. Measuring 125mm or 200mm internal diameter and 1 metre in length, it includes a built-in connector for quick and secure installation.In Stock
Couldn't load pickup availability
For warranty information, please refer to the manufacturer’s warranty policy or contact them directly.
Download Files
Description
Product Part Number
125mm Thermal Pipe - OD 153mm - QV-TH-125-P-1M
200mm Thermal Pipe - OD 225mm - QV-TH-200-P-1M
Product Overview

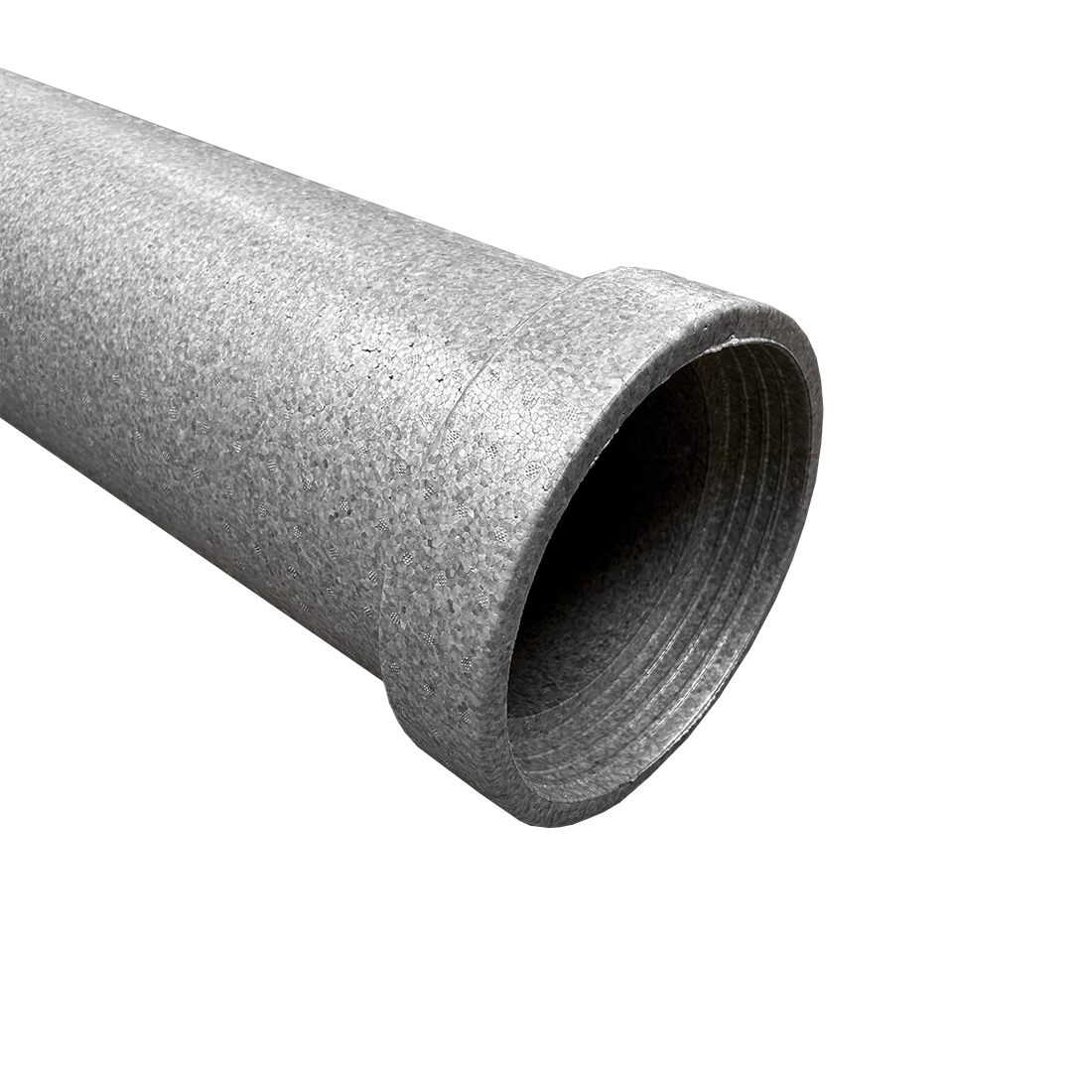

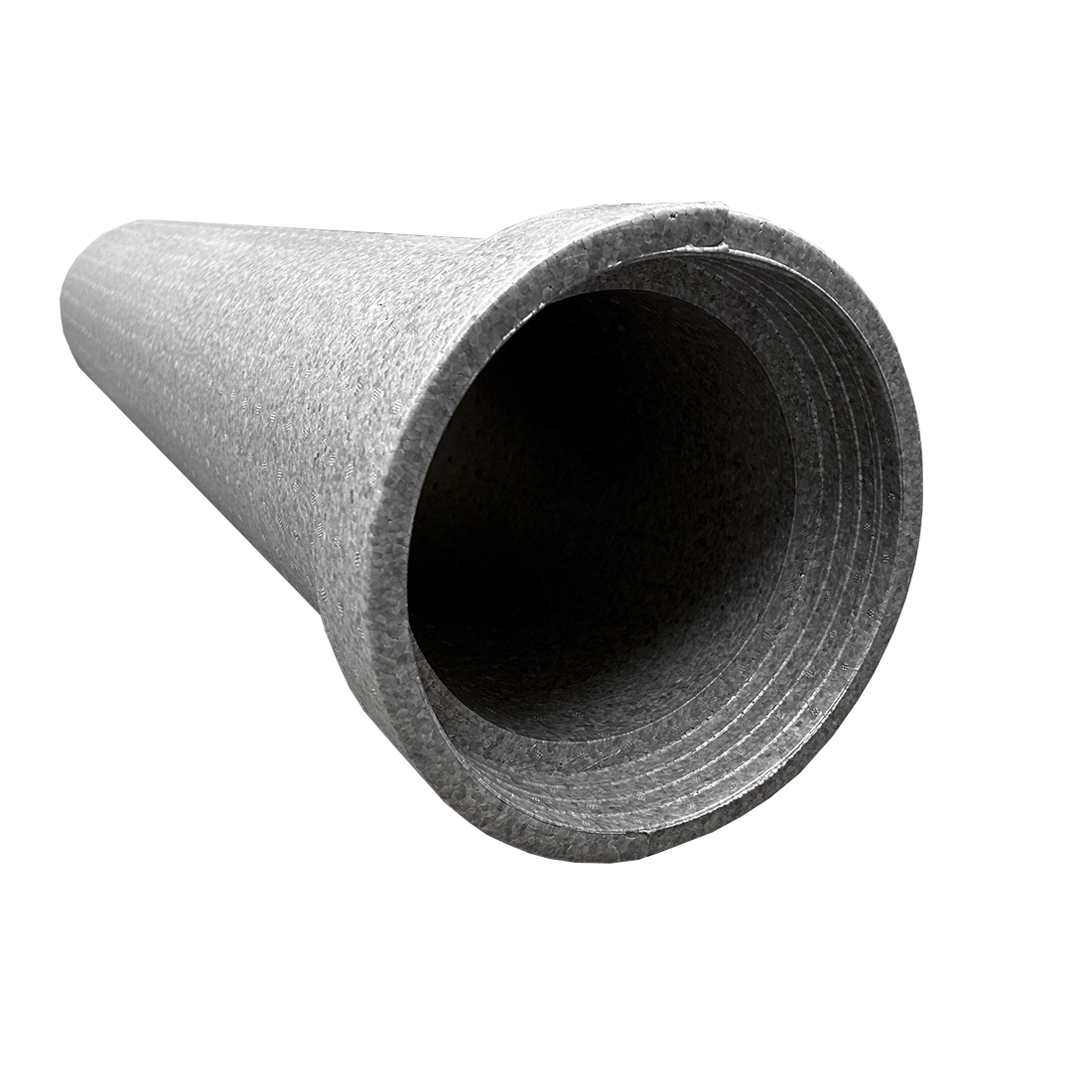

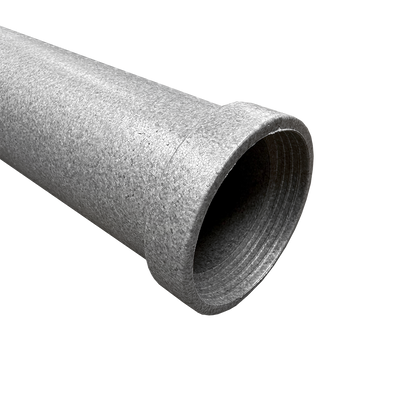

The Q-V Thermal Pipe is a high-quality thermal insulation solution designed for reliable performance in demanding environments. Measuring 125mm or 200mm internal diameter and 1 metre in length, it includes a built-in connector for quick and secure installation.
It is manufactured from EPP (Expanded Polypropylene), a tougher, more resilient, and impact-resistant foam that can recover from multiple impacts. The material is impregnated with a flame retardant to GB8624 Class B1 and is currently under test to EN 13501-1 Class B, providing enhanced durability and fire safety.
With an outer diameter of 153mm/225mm, the Q-V Thermal Pipe offers excellent thermal resistance, long-term durability, and flame-retardant performance. It is ideal for MVHR systems, ventilation ducting, and industrial applications.
Technical Specifications
- Internal Diameter: 125mm/200mm
- Outer Diameter: 153mm/225mm
- Length: 1 metre
- Material: EPP (Expanded Polypropylene), fire-retardant
- Includes: Integrated connector for fast and secure fitting
- Application: Suitable for MVHR, industrial ducting, and thermal insulation projects
