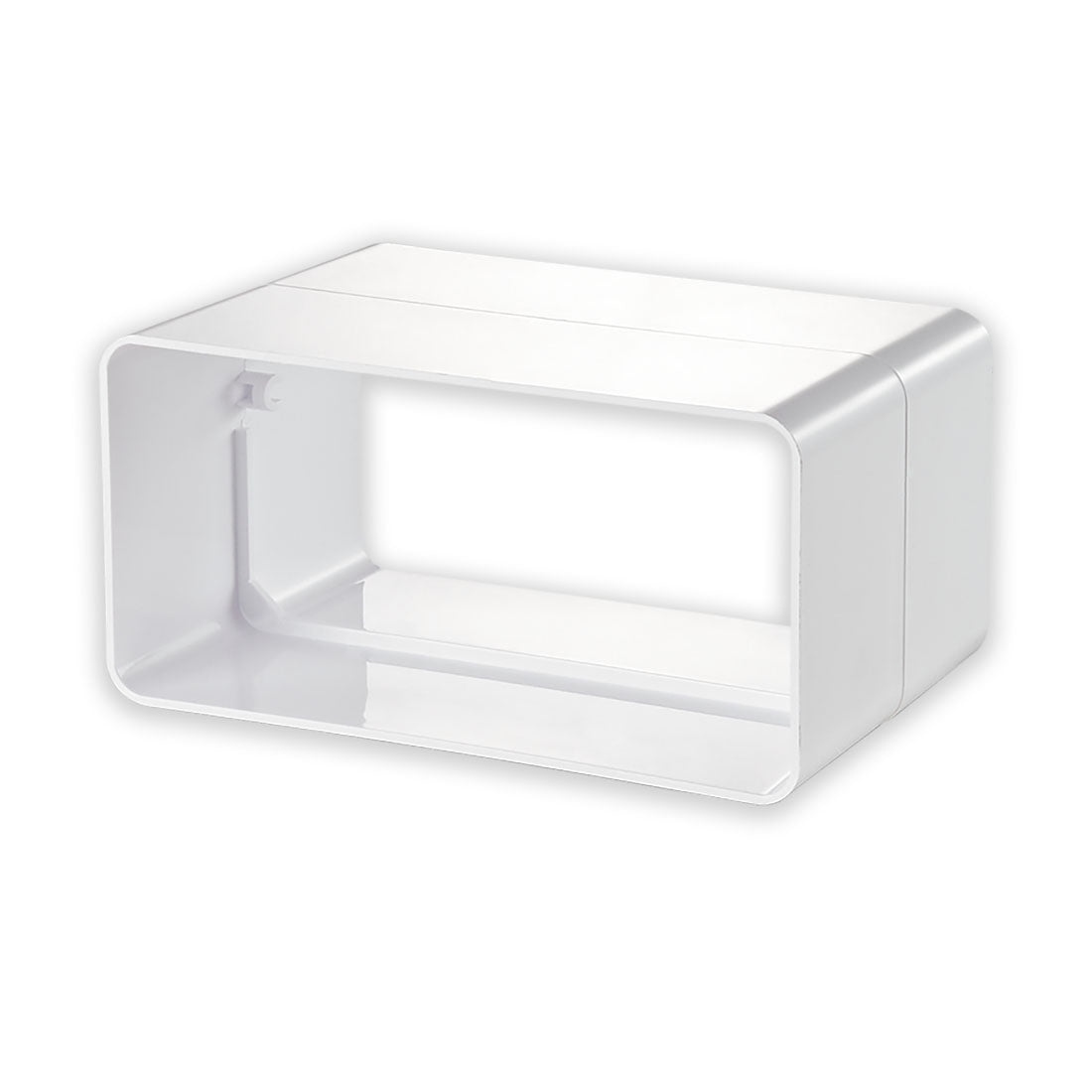

Rectangular Ducting Connector
Rectangular Ducting Connector
SKU : C110
Overview
Run ductwork around obstacles, along walls, and into ceilings with superior durability over flexible alternatives.In Stock
Couldn't load pickup availability
For warranty information, please refer to the manufacturer’s warranty policy or contact them directly.
- Order before 5pm Mon-Thurs, Dispatched Next day
Download Files
Description
Rectangular Ducting Connector
Run ductwork around obstacles, along walls, and into ceilings with superior durability over flexible alternatives.
Product Variants & Specifications
110x54mm Connector (C110) – Low-profile design for ceilings, floor slabs, or above kitchen units.
204x60mm Connector (C204) – Ideal for high-powered cooker hood extractors & whole-house ventilation systems.
220x90mm Connector (C220) – Suitable for mechanical ventilation & heat recovery systems in homes & offices.
Key Features
✔ Low-profile design – Fits inside ceilings, floors, or above kitchen units.
✔ Durable & rigid – Outperforms flexible ducting in airflow & strength.
✔ Compliant with Part F Building Regulations.
✔ Ideal for domestic & commercial ventilation – Compatible with cooker hoods, heat recovery systems & MVHR.
Compatibility
Compatible with most major manufacturers:
| Size | Verplas | Vent-Axia | Manrose | Domus | Nuaire |
|---|---|---|---|---|---|
| 110x54mm | VKC235 | 436605 | 40200 | 40020 | PVC020WH |
| 204x60mm | VKC5608 | 436623 | 58200 | 520 | PVC520WH |
| 220x90mm | VKC5708 | 403026 | 55200 | 920 | - |
Installation Guide
For optimal airtightness & durability:
✔ Apply plastic ducting sealant to the male fitting.
✔ Push fittings together.
✔ Secure with aluminium duct sealing tape.
Alternatively, self-sealing fittings can be used – reducing installation time by up to 70%.
Insulation of Ductwork
✔ If installed in...
