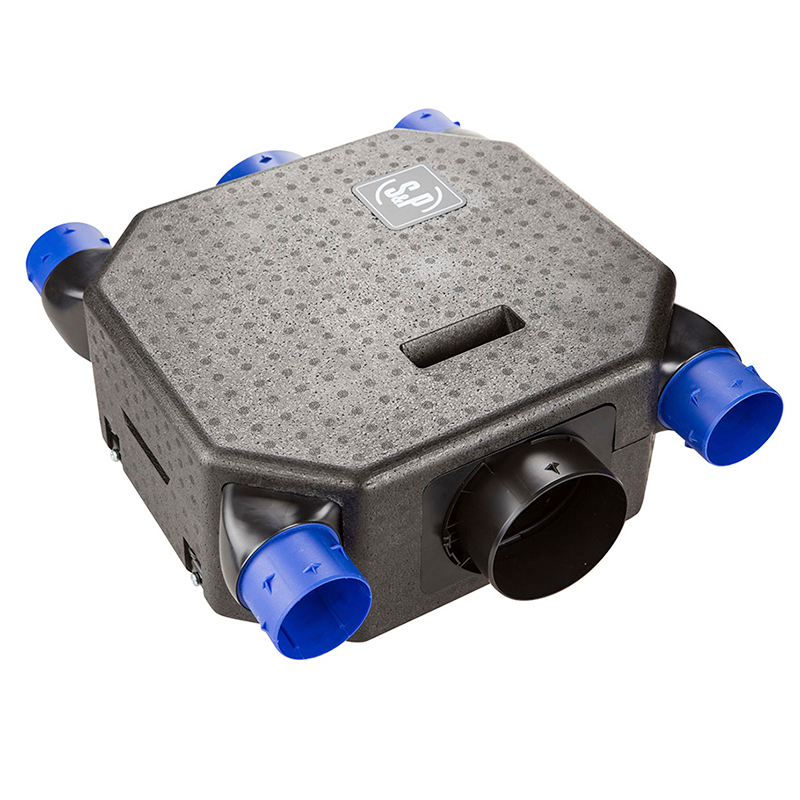

OZEO FLAT H
OZEO FLAT H
SKU : OZEO-H-Ecowatt-R8
Overview
The OZEO FLAT H 2 is a low-profile, low-noise whole-house extract unit designed for continuous air renewal in both single-dwelling homes and individual units in multi-dwelling buildings. This system features humidity-controlled air inlets (installed in living rooms and bedrooms) and humidity-controlled extraction valves (placed in wet areas such as bathrooms and kitchens), optimizing indoor air quality while improving the energy efficiency of the home. By regulating airflow based on humidity levels, the unit helps reduce heating consumption and enhances overall comfort.In Stock
Couldn't load pickup availability
For warranty information, please refer to the manufacturer’s warranty policy or contact them directly.
- Order before 5pm Mon-Thurs, Dispatched Next day
Download Files
Description
OZEO FLAT H
Standard Model
OZEO-FLAT-H-ECOWATT-R8
Product Overview
The OZEO FLAT H 2 is a low-profile, low-noise whole-house extract unit designed for continuous air renewal in both single-dwelling homes and individual units in multi-dwelling buildings. This system features humidity-controlled air inlets (installed in living rooms and bedrooms) and humidity-controlled extraction valves (placed in wet areas such as bathrooms and kitchens), optimizing indoor air quality while improving the energy efficiency of the home. By regulating airflow based on humidity levels, the unit helps reduce heating consumption and enhances overall comfort.
Key Features

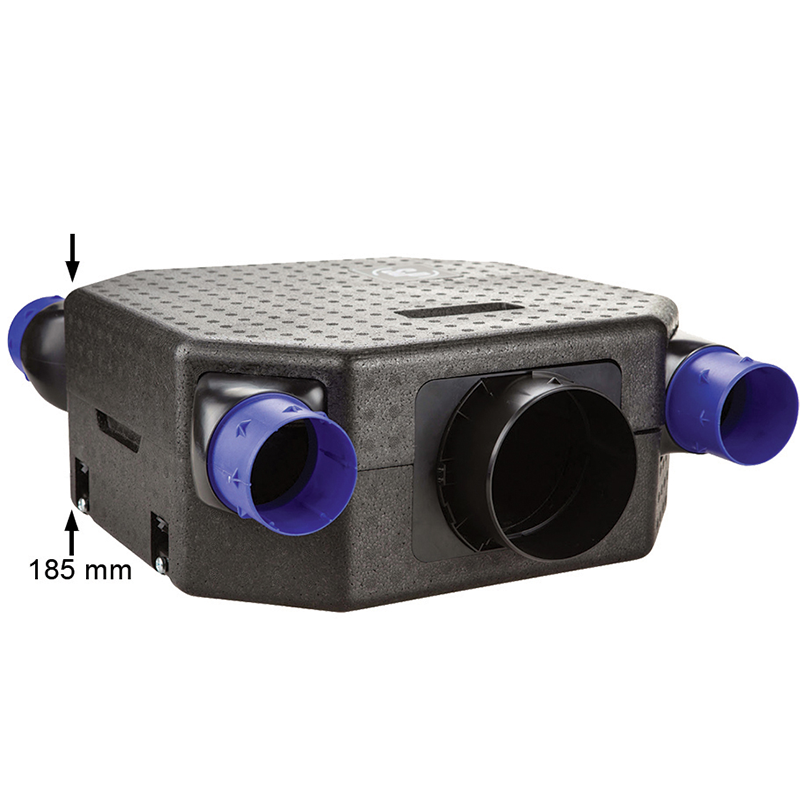

✔ Ultra-low profile design – Compact body (<19 cm) allows for easy installation in tight spaces.
✔ Lightweight construction – Made of expanded polypropylene (EPP), weighing only 3 kg for minimal structural load.
✔ Low-noise operation – Sound-dampening materials ensure quiet performance.
✔ Humidity-controlled ventilation – Automatically adjusts airflow based on indoor humidity levels for improved energy efficiency.
✔ Energy-efficient EC motor – Low power consumption with an anti-vibration system for quiet operation.
✔ Adjustable speed control – Regulated via a potentiometer to fine-tune ventilation needs.
Versions
✔ OZEO FLAT H ECOWATT – Features an EC motor, low power consumption, an anti-vibration system, and an adjustable pressure setting via a potentiometer.
Configuration
- Low-profile body (<19 cm) made of expanded polypropylene (EPP) for reduced noise and weight.
- Extraction: 4 × Ø80 mm spigots, pivoting 90º, and 1 × Ø125 mm spigot.
- Discharge: 1 × Ø125 mm spigot, with an adapter for Ø160 mm.
- Sealing caps: 4 caps included to close unused spigots.
- Mounting system: Designed for easy installation in false ceilings.
