Testo 860i & 770-3 Electrical Kit

Testo 860i & 770-3 Electrical Kit

Part Number

 300563 0862

Overview

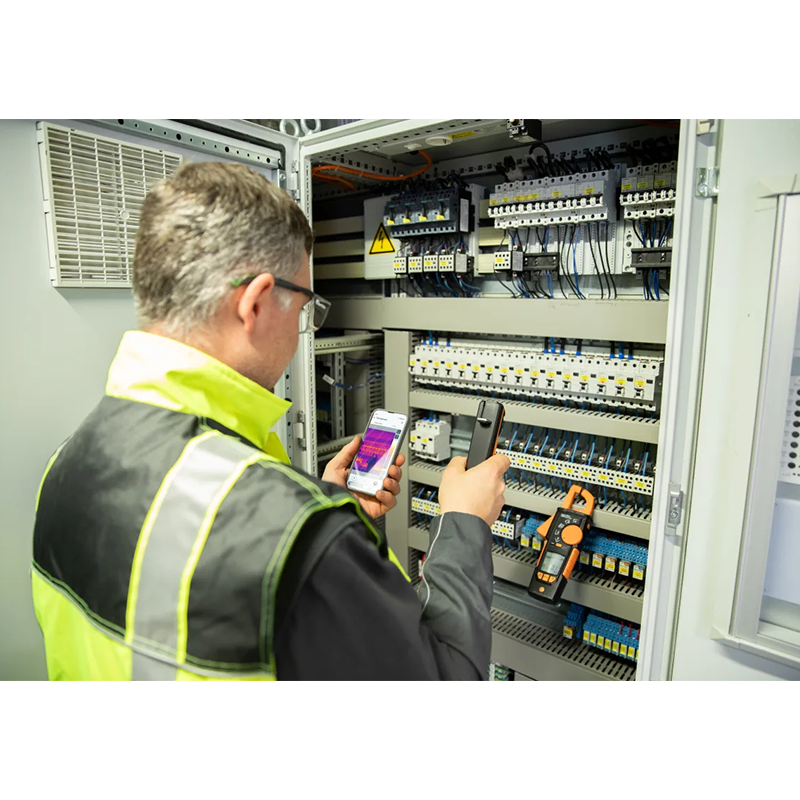

• Ideal for Electrical Inspectors looking for electronic overheating issues

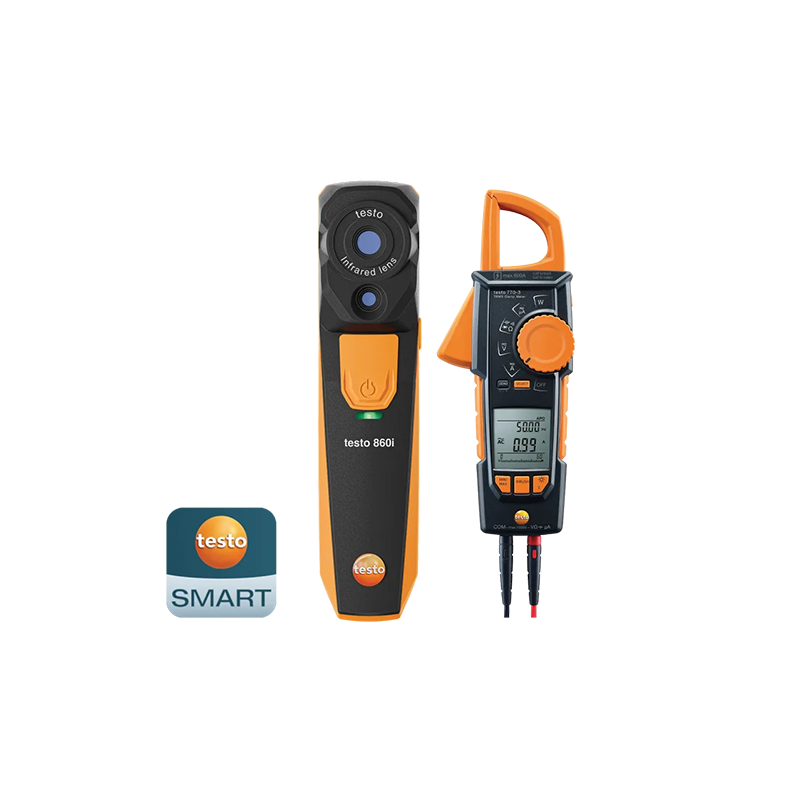

• Professional electrical inspection kit consisting of a Testo 860i smartphone thermal camera and Testo 770-3 clamp meter
• Smartphone Integration – Wireless connection via the Testo Smart App for real-time analysis and reporting.
• 860i Ultra-Sharp Thermal Imaging – High infrared resolution (256 x 192 pixels)
• 770-3 clamp with Bluetooth for demanding measuring tasks in tight application environments
• Rechargeable battery enabling a long operating time
• Durable & Reliable – IP54-rated for protection against dust and water, with drop resistance up to 1.5m.

Description

Testo 860i Thermal Imaging Camera & 770-3 clamp meter for IOS & Android

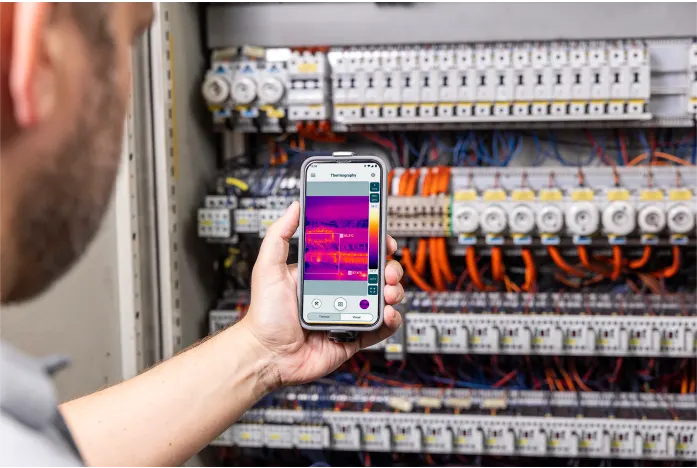

Ideal for Electrical Inspectors looking for electronic overheating issues

The Testo 860i Thermal Imaging Camera provides highly accurate results making it highly suitable for a range of tasks. For use with both iOS and Android devices, this thermal imaging camera allows for the simple identification of differential temperature (Delta T), when used in conjunction with Testo's free to use Smart App, which features delta Heat for the quick identification of the spread of flow and return temperatures, and delta Cool for working out differential temperature in refrigeration and air conditioning systems. Using this instrument is made simple with the Smart App, with effortless documentation of findings and the ability for on-site distribution of these results.

The Testo 860i offers flexible handling through wireless use, or one-handed operation directly attached to a smartphone. It is highly suitable for everyday use, with an IP54 rating ensuring protection from dust and water splashes. This allows the user to feel confident when using the instrument in a range of environments, with 1.5m drop testing also protecting the camera. A 256 x 192-pixel infrared resolution enables highly accurate thermal imaging, which can then be analysed and distributed. The 860i has been designed for ease of use and reliability, with a rechargeable lithium battery enhancing reliability. A long operating time also ensures that tasks can be completed with no worry, with this smart instrument highly suitable for everyday use.

The Testo 860i can also be used alongside a range of Testo Smart Probes, with combinations able to enhance specific testing tasks that the user desires. For example, when used in conjunction with the 605i Thermohydrometer, the user is able to test for issues relating to mould, allowing them to take preventative action before an issue develops.

The testo 770-3 clamp meter is the ideal clamp amperemeter for demanding measuring tasks in tight application environments. The movable pincer arm can be fully retracted into the instrument. This enables the instrument to grab tightly packed cables in a particularly accurate way.

Thanks to improved resolution, high-precision results are also generated in the lower current range. The testo 770-3 also has an extended voltage measurement range of up to 1000 V.

In addition, more specialized applications can be handled using the clamp meter, such as starting current, power and μA measurements. The optionally available temperature adapter for thermocouple probes can be used to measure electrical parameters as well as temperatures (compatible Type K thermocouple probe can be ordered separately).

The clamp amperemeter automatically detects and selects AC/DC and other parameters, such as resistance, continuity, diode and capacitance, This makes operation easier and more reliable than ever before.

The measurement values can be clearly shown on the two-part display of the clamp meter and in the testo Smart App. The testo 770-3 can be quickly and easily connected to the testo Smart App and other Testo measuring instruments via Bluetooth. In the App, you can display the measurement curve as a graph on your smartphone/tablet and save and send readings directly in the report.

Key features

• Razor sharp thermal imagery thanks to 256 x 192 pixels
• Easy to use with flexible, one-handed usage
• IP54 rated with fall protection up to 1.5m
• Perfect choice for quick spot checks in the HVAC trade, maintenance, buildings, and many other applications
• The 860i enables for the quick and easy determination of differential temperature (Delta T)
• The Smart App includes Delta Heat for the determination of the spread of flow and return temperatures on radiators
• It also includes Delta Cool for the quick establishment of differential temperature in refrigeration and air conditioning systems
• A humidity mode function assesses the risk of mould indoors
• The Smart App displays the thermal image and differential temperature, and allows the user to document it
• Equipped with a rechargeable lithium battery with a long operating time
• The 860i can be used one-handed, either when connected directly to a smartphone or tablet or separately
• The Smart App is a universal app for all applications, such as HVAC/R systems, industry services and faculty management, and food safety
• Complete Kit for Convenience – Includes Testo 860i thermal imaging camera, protective pouch, USB-C cable, and cardboard packaging.
• Thermal Sensitivity of 0.05°C – Detects even subtle temperature differences for reliable inspections.
• Increased accuracy in the lower current range thanks to improved resolution
• TRMS measurement
• Auto AC/DC for voltage and large two-line display
• Bluetooth connection to testo Smart App and other Testo measuring instruments
• Easy to operate thanks to the retractable pincer arm

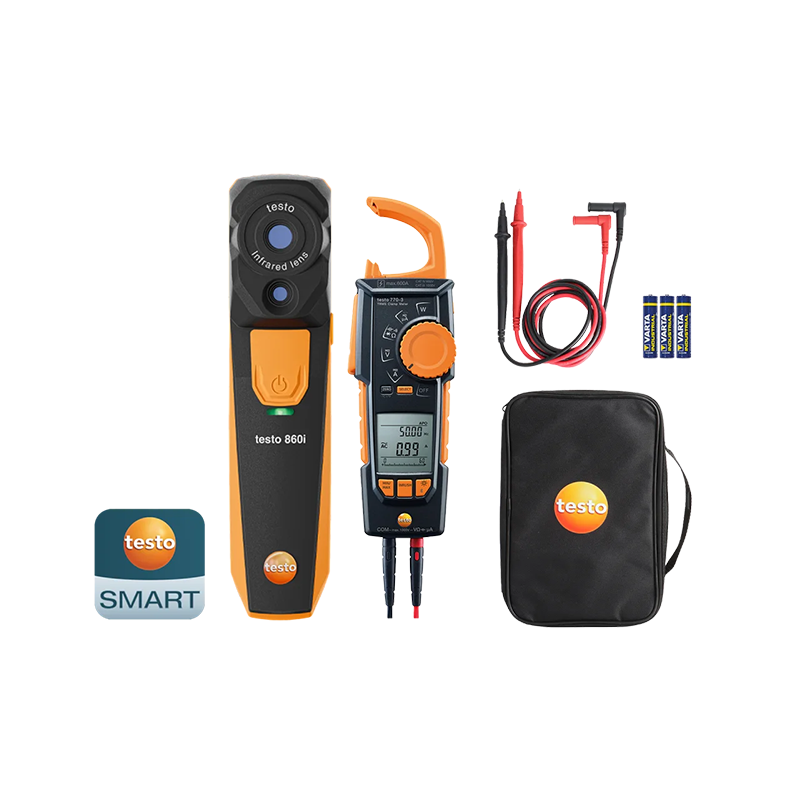

What's In the Box?

• Testo 860i Thermal Imaging Camera
• Pouch
• USB-C Cable
• Testo 770-3 clamp meter
• 1 set of measuring leads
• Clamp meter case

Models

0563 0860 - Testo 860i thermal imaging camera

300563 0861 - Testo 860i mould kit- thermal camera + 605i Thermohydrometer

300563 0862 - Testo 860i Elect kit- thermal camera + 770-3 clamp meter

0560 2605 02     - Testo 605i Thermohygrometer

0590 7703 02     - Testo 770-3 clamp meter
